3003 aluminum water cooling plate for heat sink
-
USD5001-99 Piece/Pieces
-
USD100100-999 Piece/Pieces
-
USD50≥1000 Piece/Pieces
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 100000pcs per month |
Supply Ability: | 1200000pcs per year |
Payment Type: | L/C,T/T,Western Union |
Incoterm: | FOB,CFR,CIF,EXW |
Certificate: | ISO 9001 |
HS Code: | 7608 |
Transportation: | Ocean,Land,Air |
Port: | Shanghai |

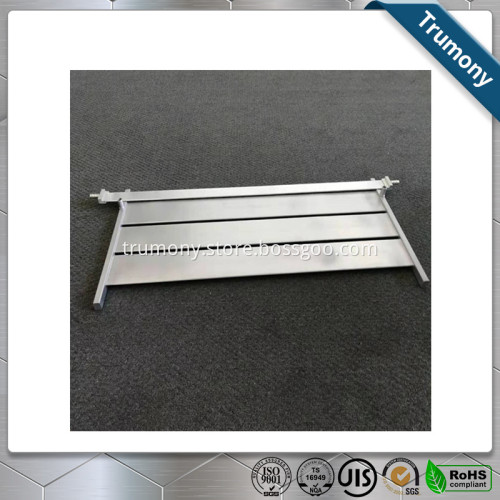

3003 aluminum water cooling plate for heat sink
The main advantages of aluminum alloy materials 1, light and soft. The density of aluminum is 2171 g/cm3, which is about one third of the density of steel (7187 g/cm3); the Young's modulus is also about one third of that of steel. 2. Good strength. The tensile strength of pure aluminum is about 80 MN/m2, which is one-fifth of low-carbon steel. But after heat treatment strengthening and alloying strengthening, its strength will be greatly increased. For example, the commonly used material of aluminum alloy car body is 6005A-T6, and its minimum tensile strength is 360 MN/m2, which can reach the corresponding strength value of low carbon steel. Trumony provide good quality aluminum plate, aluminum brazing strip coil, aluminum polished coil, aluminum cooling plate, aluminum heat pipe and so other aluminum made products.
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling plate for heat sink, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
Trumony belief: Trust and Harmony
Mechanical property of 3003 aluminum water cooling plate for heat sink:
Alloy code | Temper | Tensile Strength Rm(Mpa) | Yield Strength Rp0.2(Mpa) | Elongation |
TR010,TR020,TR030,TR040,TR050,TR110,TR310, TR116,TR316,TR111, TR313,TR121,TR131, TR141,TR150,TR151,TR156 etc |
O | 95~135* | ≥35* | ≥15* |
H14 | 140~185 | ≥125 | ≥1.5 | |
H24 | 140~185 | ≥125 | ≥3 | |
H16 | 185~225 | ≥160 | ≥1 | |
H18 | ≥185 | - | ≥0.5 | |
TR166 etc tube material | H24 | 185~235 | ≥150 | ≥8 |
TR116,TR316 etc tube material | H14 | 140~185 | ≥125 | ≥3 |
H24 | 140~185 | ≥125 |
≥8 |
Title goes here:
1) Alloy : 1 series, 3 series, 4 series, 6 series etc
2)Temper:O/H12/H14/H16/H18/H32/H34/H36/H38//H111/H112/H116/H321/T6/T651/T3/T351 etc
3) Thickness: Customrized
4) Width: Customized
5)Length: Customized
6) Protective film can be added
7) Production Line: DC and CC production line
8) Application: Heat exchanger/ heat sink
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good after sells service, and understandings for customers;
FAQ
1, Q: Are you manufacturer of 3003 aluminum water cooling plate for heat sink?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable pipe & tubes.
