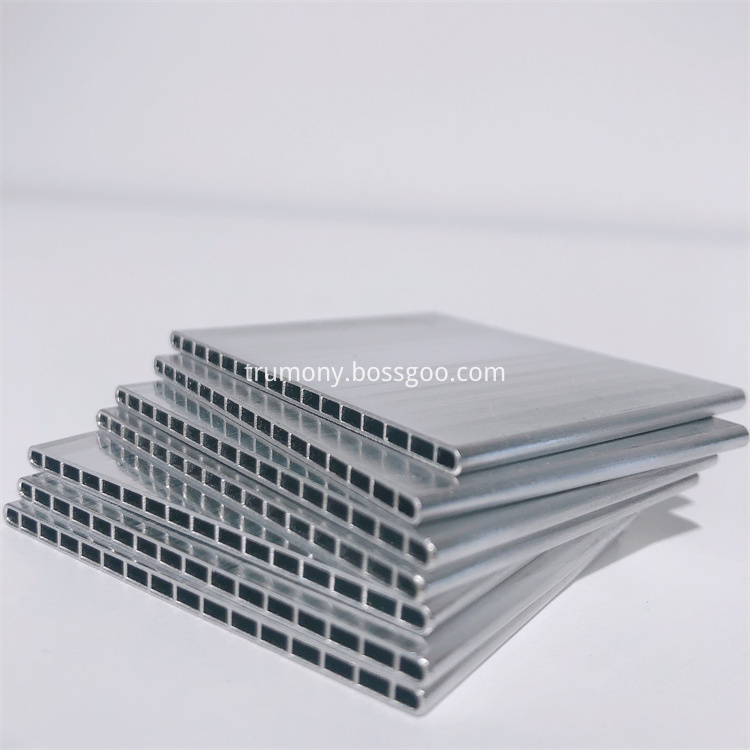

High Precision Aluminium Flat Micro Channel Radiator Tube
Product introduction:
Item: Multi port extrusions/MPE aluminum tube/aluminum pipe/aluminum flat tube/aluminum tubing/aluminum piping/aluminum coil/aluminum extrusions.
Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer.At the same time,it has its advantages,such as excellent conduction of heat,excellent corrosion resistance,high cycle reuse value,high surface quality,low weight and high compressive reinforcement.
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Oil coolers
Radiators
Condensers
Evaporators
Heater cores
Commonly used material chemical composition
No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
