3003 micro channel aluminium tube for heat sink

3003 micro channel aluminium tube for heat sink

USD500

1-99 Piece/Pieces
USD100

100-999 Piece/Pieces
USD50

≥1000 Piece/Pieces

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Air

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs per month
Supply Ability:	1200000pcs per year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	IATF
HS Code:	7608
Transportation:	Ocean,Air
Port:	Shanghai Port

Product Description

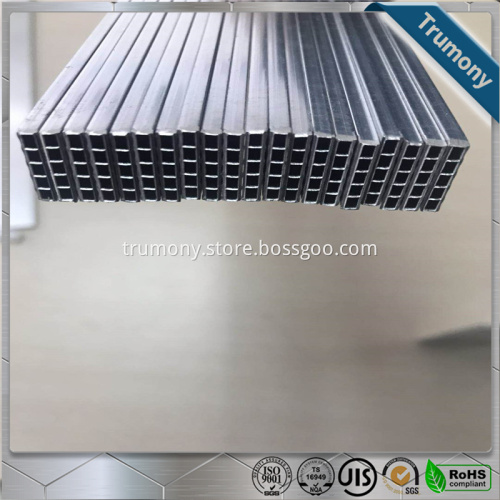

Product name: 3003 micro channel aluminium tube for heat sink

Aluminum Alloy Parallel Flow Microchannel Flat Tube is the high-tech aluminum product under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.

Our Microchannel Flat Tube is the core material of new generation parallel flow air conditioning heat exchangers.It is outstanding environment-friendly,efficient,energy-saving and cost reduction and was approved vividly in automobile air conditioning system.With restriction and prohibition of the application of the traditional refrigerant,it is a trend that household and commercial air conditioning heat exchanger needs revolution.Our Microchannel Flat Tube will play an important role in this field.

Commonly used material chemical composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Supply state and mechanical properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Beside increased global performances, an all-aluminium brazed heat exchanger using Microchannel Flat Tube will also present better corrosion resistance. Microchannel Flat Tubes are primarily used for the following applications:
Condensers
Evaporators

Oil coolers

Radiators
Heater cores

3003 micro channel aluminium tube for heat sink are available in various sizes and alloys, ensuring the best properties for the purpose required.

Dimensions: Designed to customer specification

Package: coils or Straight with fixed length

Surface Treatment : Zinc spray / without Zinc spray

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.

Microchannel Flat Tube
