Ultrawide Aluminum Micro Channel Tubes for Heat Exchanger

Ultrawide Aluminum Micro Channel Tubes for Heat Exchanger

USD500

1-99 Piece/Pieces
USD100

100-999 Piece/Pieces
USD50

≥1000 Piece/Pieces

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100,000 pcs per year
Supply Ability:	1000,000pcs per year
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO,SGS,UL,GB
HS Code:	76109
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

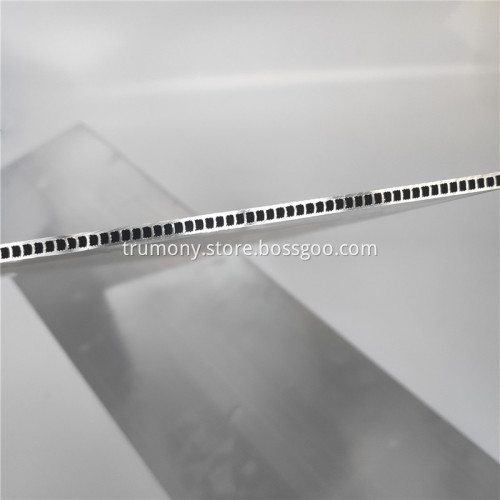

Ultrawide Aluminum Micro Channel Tubes for Heat Exchanger

1.Application of 3003 aluminum micro channel pipe:

1) car air conditioner

2) in the field of commercial:

such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler

2.Alloy States:

1) 1000 series:1050, 1100, 1197

2) 3000 series:3102, 3R03

3.Temper: O/F/H111/H112

4.Mechanical Properties of Oil Cooler Tube

No.	Alloy	Temper	Tensile Strength(Mpa)	Yield Strength(Mpa)	Elogation(%)
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

5.Chemical Composition of aluminum micro pipe

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤ 0.25	≤ 0.40	≤ 0.05	≤ 0.05	≤ 0.05	-	≤ 0.05	≤ 0.05	≤ 0.03
2	1100	≤ 0.95(Fe+Si)		0.05-0.20	≤ 0.05	-	-	≤ 0.10	-	-
3	1197	≤ 0.15	≤ 0.20	0.40-0.55	0.10-0.20	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05	≤ 0.05
4	3102	≤ 0.40	≤ 0.70	≤ 0.10	0.05-0.40	-	-	≤ 0.30	-	≤ 0.10
5	3R03	≤ 0.15	≤ 0.15	≤ 0.01	0.90-1.10	≤ 0.03	≤ 0.03	≤ 0.05	≤ 0.05	≤ 0.05

6. Size Tolerance of brazing aluminum micro channel pipe

Width	Thickness	Wall Thickness	Length	Lateral Curvature	Frontal Curvature	Twsiting Dgree
± 0.05mm	± 0.03mm	± 0.05mm	± 0.03mm	≤ L× 0.2%	≤ L× 0.25%	≤ L× 0.15%

7.Our products will be tested in strict standard before delivery, some data for your reference.

No	Products' Testing Name	Contents and requests
1	Corrosion Resistance	Salt spray test: ≥ 750 hours
2	Zn Coating Standards	6/8/10/13± 2g/square meter
3	Flux Cotaing Standards	10-15± 2g/square meter

8.Commercial terms

Minimum Order Quantity:	5 metric tons
Price:	negotiation
Payment Terms:	T/T or LC
Supply Ability:	50,000 mt per year
Delivery Time:	30 working days after received your down payment
Packaging Details:	Standard export packaging

Micro Channel Aluminium Tubes 2
FAQ
1, Q: Are you manufacturer of Aluminum Micro channel Tube?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.

5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.

6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
1~2days if no stocked sample and the sample structure is not complex;
3~5days if no stocked sample and the sample is with complex structure.
