3102 Wide Aluminum Tube Extrusion For CAC

3102 Wide Aluminum Tube Extrusion For CAC

USD500

1-99 Piece/Pieces
USD100

100-999 Piece/Pieces
USD50

≥1000 Piece/Pieces

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 35 Days

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs per month
Supply Ability:	1000000pcs per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	TS16949,ISO
HS Code:	7608
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

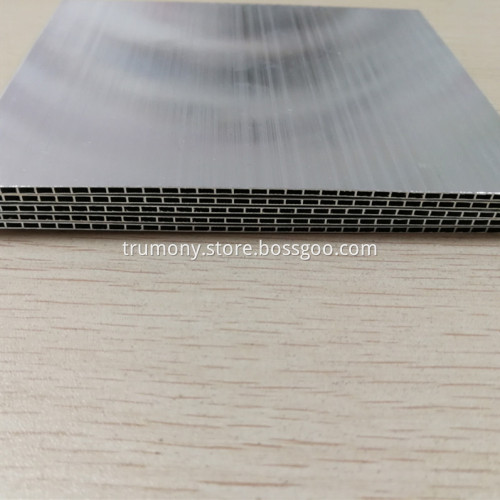

3102 Wide Aluminum Tube Extrusion For CAC

We are supplying the micro-channel aluminum tube and also the wide extruded aluminum tube for automobile heat exchangers.The tube width can be more than 100mm.

Product Description:

Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:

1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution

Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators

Oil coolers

Radiators
Heater cores

Multiport Extruded Aluminum Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.

Dimensions: Designed to customer specification

Package: coils or Straight with fixed length

Surface Treatment : Zinc spray / without Zinc spray

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Supply state and mechanical properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.

aluminum tube extrusion

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling sheet for heat exchanger, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, inter cooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine.
