CAC Aluminum Heat Pipe Vacuum Micro Channel Tube

CAC Aluminum Heat Pipe Vacuum Micro Channel Tube

USD500

1-99 Piece/Pieces
USD100

100-999 Piece/Pieces
USD50

≥1000 Piece/Pieces

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000pcs per month
Supply Ability:	1000000pcs per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	TS16949,CE,ISO,RoHS,UL
HS Code:	7608
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

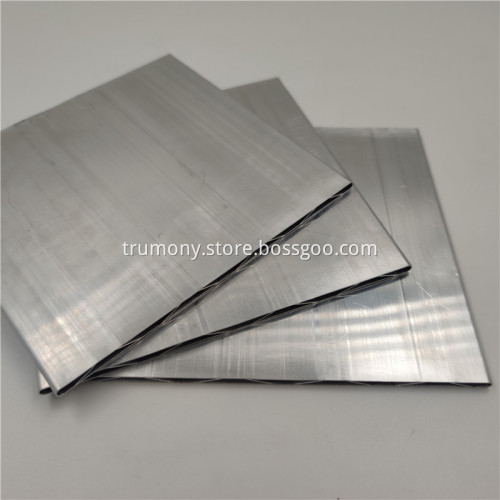

CAC Aluminum Heat Pipe Vacuum Micro Channel Tube

-Low weight

-Excellent conductor of heat and electricity
-High corrosion resistance
-High recycling value
-High surface quality
-High pressure resistance.Aluminum galvanized Micro Multi Port Extrusion （MPE） is the main component part
Of air-conditionings and the parallel flow evaporators and condensers of other
Refrigeration equipments.Our Aluminum Micro Channel Tube can be widely used for heat sink / transfer.
Like evaporator, air conditioner, condenser, heat exchanger, freezer, oven gas, boiler and so on.
The material can be 1050/1060/1070/3003/3102 or as customer's request.
Temper O-H112,H112,F.
We can do many kinds of sizes, such as 4.0x0.5mm, 6.0x1.0mm,7.0x1.0mm, 7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,16.0x1.0mm, 9.05x1.5mm.Beside increased global performances, an all-aluminum brazed heat exchanger using Micro Multi Port Extrusion (MPE) will also present better corrosion resistance. Micro Multi Port Extrusion (MPE) are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater coresThe micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fillProduct Description:
Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.Our products are widely used in the field of conduction and heat dissipation of a series of products, such as new energy vehicles, lithium batteries, energy storage batteries and son on. We has worked with well-know international companies to develop relevant technical solutions and sample or supply.

Mechanical property
Alloy Code	Temper	Tensile Strength Rm(Mpa)	Yield Strength(Mpa)	Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3
	H16	185-225	160	≥1
	H18	≥185	--	≥0.5
TR-166Etc. Tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

OD	OD Tolerance	ID Tolerance	Roundness	straightness	Circular run-out
φ16-20	±0.02	±0.02	0.01↓	0.015↓	0.05↓
φ20-30	±0.02	±0.02	0.01↓	0.015↓	0.05↓
φ30-50	±0.05	±0.05	0.02↓	0.020↓	0.08↓
φ50-80	±0.15	±0.10	0.05↓	0.025↓	0.10↓

Mechanical Properties
No	Alloy	Temper	Tensile strength	Yield strength	Elongation
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.

Aluminum Tube

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling sheet for heat exchanger, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, inter cooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine.
