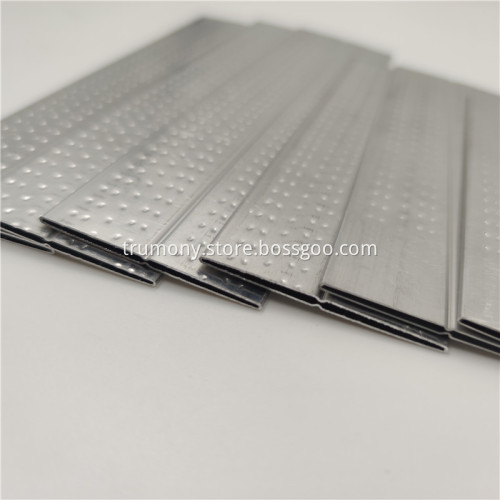

Aluminum Heat Sink Dimpled Brazing Multiport Tube Pipe

Aluminum Heat Sink Dimpled Brazing Multiport Tube Pipe

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF, EXW

Min. Order:: 2 Ton

Min. Order:: 2 Ton

Delivery Time:: 45 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000Ton per Year
Supply Ability:	100000Ton per Year
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	TS16949,CE,ISO,RoHS,UL
HS Code:	7608
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Micro-channel flat aluminum pipe with their large internal surface area, yield more efficient heat transfer and are therefore ideal for use in highly effective heat exchangers.Beside increased global performances, an all-aluminum brazed heat exchanger using Micro Multi Port Extrusion (MPE) will also present better corrosion resistance. Micro Multi Port Extrusion (MPE) are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater coresThe Micro Multi Port Extrusion （MPE） was equipped in environment-friendly auto air-conditioning systems
Which use R134A as the refrigerant in European Union and China successively in
The year of 1996 and 2002. With a development of more than ten years, it has
Become a mature technology.The Micro Multi Port Extrusion (MPE) is a highly refined quality product and is charac-terised by the following properties:
-Low weight
-Excellent conductor of heat and electricity
-High corrosion resistance
-High recycling value
-High surface quality
-High pressure resistance.Aluminum galvanized Micro Multi Port Extrusion （MPE） is the main component part
Of air-conditionings and the parallel flow evaporators and condensers of other
Refrigeration equipments.The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fillProduct Description:
Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Mechanical property
Alloy Code	Temper	Tensile Strength Rm(Mpa)	Yield Strength(Mpa)	Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3
	H16	185-225	160	≥1
	H18	≥185	--	≥0.5
TR-166Etc. Tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

OD	OD Tolerance	ID Tolerance	Roundness	straightness	Circular run-out
φ16-20	±0.02	±0.02	0.01↓	0.015↓	0.05↓
φ20-30	±0.02	±0.02	0.01↓	0.015↓	0.05↓
φ30-50	±0.05	±0.05	0.02↓	0.020↓	0.08↓
φ50-80	±0.15	±0.10	0.05↓	0.025↓	0.10↓

Mechanical Properties
No	Alloy	Temper	Tensile strength	Yield strength	Elongation
1	1050	O/F/H111/H112	≥ 65	≥ 20	≥ 25
2	1100	O/F/H111/H112	≥ 75	≥ 20	≥ 25
3	1197	O/F/H111/H112	≥ 80	≥ 25	≥ 20
4	3102	O/F/H111/H112	≥ 75	≥ 20	≥ 25
5	3R03	O/F/H111/H112	≥ 80	≥ 25	≥ 20

Aluminum Tube

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
