aluminum water cooling plate design example

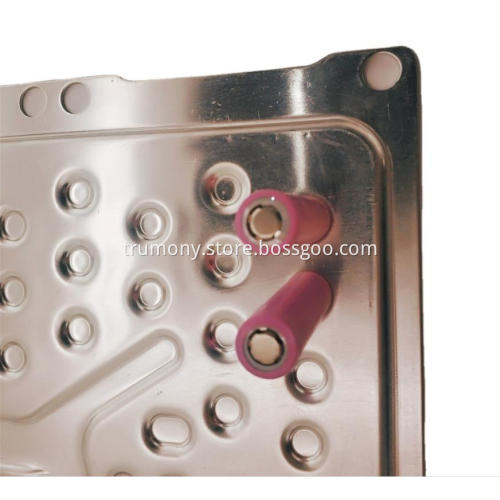

The module-level liquid cooling plate or aluminum water cooling plate is used as a module inside the battery pack. It is generally placed under the battery module and directly contacts the battery for heat dissipation. The design of each car manufacturer is very different. Most of the design structure is battery module-liquid cold plate. There are also a few manufacturers. In order to better solve the heat dissipation problem, the parallel structure of battery and module is used. Below is the battery module-liquid cooling plate-battery module-liquid cooling plate.

1) Aluminum Alloy : 3003
2)Temper:O/H12/H14/H16/H18/H32/H34/H36/H38//H111/H112/H116/H321/T6/T651/T3/T351 etc
3) Thickness: 1.2mm, 1.5mm for single plate, total thickness of plate over 3mm. Or customized
4) Width: 400mm, 800mm, or customized
5) Length: 900mm, 1300mm, or customized

6) Application: Heat exchanger/ heat sink for battery cooling, LED cooling etc

7) Technical:Brazing/ extrusion

Mechanical property of 3003 3003 Aluminum brazing sheet for water cooling of heat exchanger:

1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. Design ability and design develop service;
6. High performance cost ratio;
7. Fast delivery time:15-30 days
8. Good communication skills, and good after sells service, and understandings for customers;
