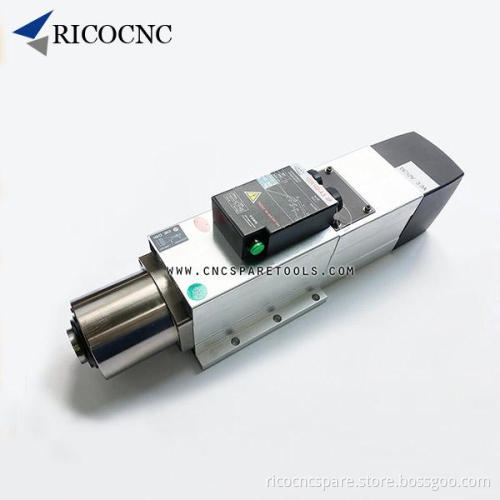

4.5kw Air Cooled Automatic Tool Change Spindle Chinese ATC Spindle Motor for CNC Router

After serveral years development, Chinese spindle proformance is more stable and becomes better and better. High-precision bearings, high precision, long life. Start from manual tool change spindles, now automatic tool change spindles also become popular. The electric spindle fan cooling with gas seal structure, automatic tool changer with ISO30 cone, fast automatic tool change.
4.5kw, 9Kw air-cooled automatic tool change spindle are widely used with woodworking ATC CNC router machines. Auto tool change improved the efficiency of the automated processing.

4.5kw Air Cooled Auto Tool Changer Spindle/ISO30 Cone
Spindle type: GDZ120*103-4.5
Speed: 24000rpm
Power: 4.5KW
Voltage: 380V/220V
Current: 9A/10.7A
Frequency: 800HZ
Joint of nose: ISO30
Cool: air cooling
Bearing type: 7008CP4*2+7006CP4*2
Weight: 21KG

GDZ143*133-9KW Air Cooling Spindle Motor with ISO30 Toolholder for CNC Router (Same as Italy HSD)

Model NO	GDZ143*133-9.0
Power	9KW
Speed(R/Min)	12000-24000RPM
Frequency	400-800HZ
Voltage	220V/380V
Current	18A
Poles	4
Collet	ISO30/BT30
Lubrication	Grease
Cooling Type	Air Cooling
Bearing Type	27008 + 27006 Bearings Front Ceramic Bearings Rear Ceramic
Warranty Period	Bearings for half year, other parts for one year
Certification	ISO9001, CE, SGS, ROHS

RicoCNC also supplies a range of cnc spare parts such as dust skirt for cnc router, cnc tool holder, cnc forks, tool lock seat, cnc machine dust extractor, hsk-e32 tool tightening fixture, foam mill frog tools, etc.

Welcome your inquiry.
