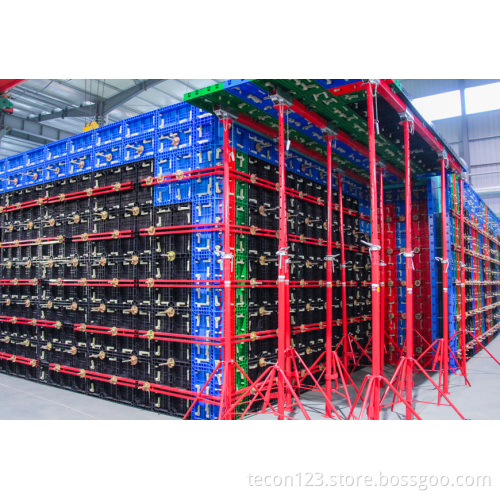

Plastic Formwork TP60+

TECON plastic formwork for concrete walls TP60 is recognized as the lightest formwork system due to its medium size panel design and the application of ABS (Acrylonitrile Butadiene Styrene). Besides its lightweight, it is also elementary to use even by unskilled workers. Walls, columns, slabs can be quickly and efficiently formed with only a few panel sizes and accessories.

Feature of Plastic Formwork TP60+
Quick clean with just water.
Installation without crane assistance due to its lightweight.
Fast and extremely easy to assemble with only a few accessories, no skilled workers required.
Universal application on walls, columns and slabs and others, also the modular house with one pour.

Specification of plastic formwork for concrete slab TP60+
Less or even no plaster after strip.

Different column sizes at 5cm increment start from 20cm.

It can also be used with foam concrete (lightweight concrete).

High strength and durable panels can reach up to 100 reuse times.

Up to 25cm slab thickness and 3.6m high wall by one pouring, for a maximum fresh concrete pressure of 50Kn/m2.

Main Panel size and weight
Description Size Unite weight
Panel TP120/60 1200x600 9.70
Panel TP40/60 400x600 3.10
Panel TP30/60 300x600 2.40
Panel TP25/60 250X600 2.10
Panel TP20/60 200x600 1.90
Panel TP18/60 180x600 1.30

Application of Plastic Formwork TP60+
Medium and small size residential and commercial buildings, basement, columns and modular houses and others, especially adapt to anti-corrosion needed project.

RELATED PRODUCTS of Plastic Formwork TP60+
Alu Lite formwork

LITE Steel Formwork

Adjustable plastic column formwork

At TECON, we provide beam shuttering, construction of column formwork and etc. We provide a one-stop service supporting you from technical planning, budgeting through to project completion.
