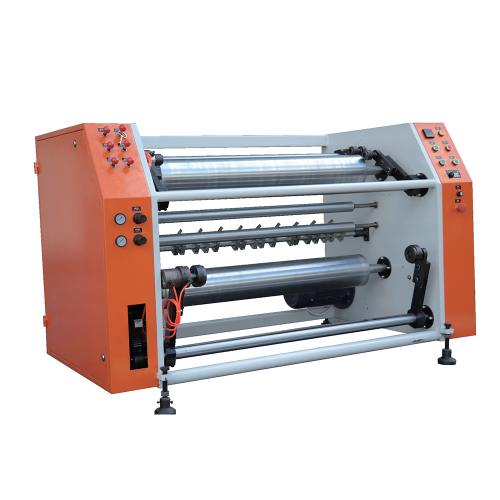

Semi-Automatic Single Shaft Rewinding and Slitting Machine
Your message must be between 20 to 2000 characters
Contact NowSemi-Automatic Single Shaft Rewinding and Slitting Machine
Rewinding Machine Description
HT semi-automatic stretch film rewinding and slitting machine can rewind big mother roll into small roll both the same and different width size. Through the slitting/rewindingchannel, wrong layer can be corrected and some printing and composition defects can be removed , accordingly, the appearance of the coil flatness is enhanced.
The Product Features
1. It's easy to operate and control for every worker.
2. High speed, inverter control
3.Running stably with thick panel of machine, we can make different widthaccording to customers' requirements. No paper core is environmental protection and cost savings.
Automatic Rewinding Machinery Display
The Dimensions of Freezer Bags Rewinding Machine
| Model | HTR-S500/HTR-S750/HTR-S1000 |
| Width Of Mother Roll | Max 500mm/750mm/1000mm |
| Width Of Finish Roll | Min 50mm - Max 500mm/750mm/1000mm |
| Speed | 600 m/min |
| Mother Roll Diameter | 400mm |
| Finish Roll Diameter | Rewinding 300mm + Slitting 200mm |
| Core Of Mother Roll | 3" |
| Core Of Finish Roll | 3", 2", 1.5" (Thickness of paper core ≥4mm) |
| Size of Airshaft | 3" |
| Diameter of Finished Product | Max 150mm |
| Dimension | Depend on Different Model |
| Net weight | Depend on Different Model |
