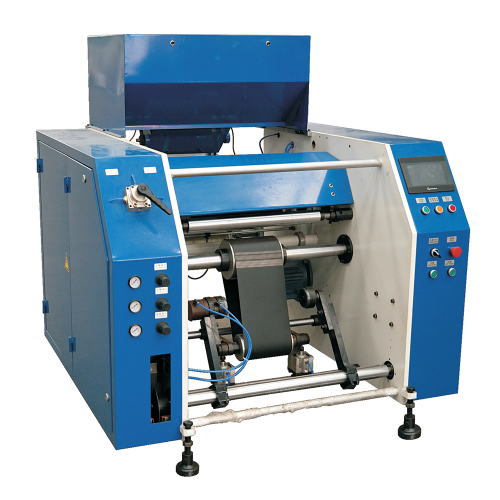

Automatic Rewinding Machine with Perforating System
Your message must be between 20 to 2000 characters
Contact NowAutomatic Rewinding Machine with Perforating System
Product Description
This machine is mainly designed for rewinding hotel-using PE/PVC cling film. Rewinding takes place in parallel with tearing line in consideration of environmental-protection. This is the model which is specialized in food plastic film rewinding machine. It's easy to operate and tear off. In contrast with the traditional packing methods, our machine possesses no tooth cutters, and therefore saves packing cost.
The Features of Rewinding Machine
1. High efficiency with 5 shaft rewinding system.
2. It's simple to operate with PLC and HMI,together with inverter control system.
3. Machine will be alarmed and stopped if there is no paper core in the hopper and the shaft. It's people-oriented.
4. Servo control to tear break distance can be set freely.
Product Display
The Dimensions of Automatic Rewinding Machinery
| Model | HTR-D300 |
| Width Of Mother Roll | 200mm - 300mm |
| Width Of Finish Roll | 200mm - 300mm |
| Speed | Maxi 8rolls(30m/roll)/min |
| Mother Roll Diameter | Max 500mm |
| Finish Roll Diameter | Min8m-Max200m |
| Core Of Mother Roll | 3" |
| Core Of Finish Roll | Outside diameter 34-44mm |
| Line Distance | Customized Min 150mm |
| Dimension | 1350*1265* 1450/mm |
| Net weight | 700KG |
