Description
Fully automatic Three-shafts high speed stretch/cling film rewinding machine is mainly used for rewinding big mother roll into small roll to reduce cost for customers. Improving the running efficiency. It can reduce the cost and rewinding thePE/PVC cling film on one machine.
The Features of Automatic Rewinding Machine
1. The 3 shafts method infinitely improves the working efficiency.
2. It's simple to operate with PLC and HMI,together with inverter control system.
3. Loading and changing paper core, cutting and loading finished products, plus slicing and blanking, all can be finished automatically. Also the cylinder linkage supporting frame ensures the safety of finished products
4. One single worker can operate two or three machines with conveyor at the same time. (Conveyor is the choice system, not included the machine
5. High speed rewinding makes high production efficiency, saving cost
6. Machine will be stopped if there is no paper core in the hopper.

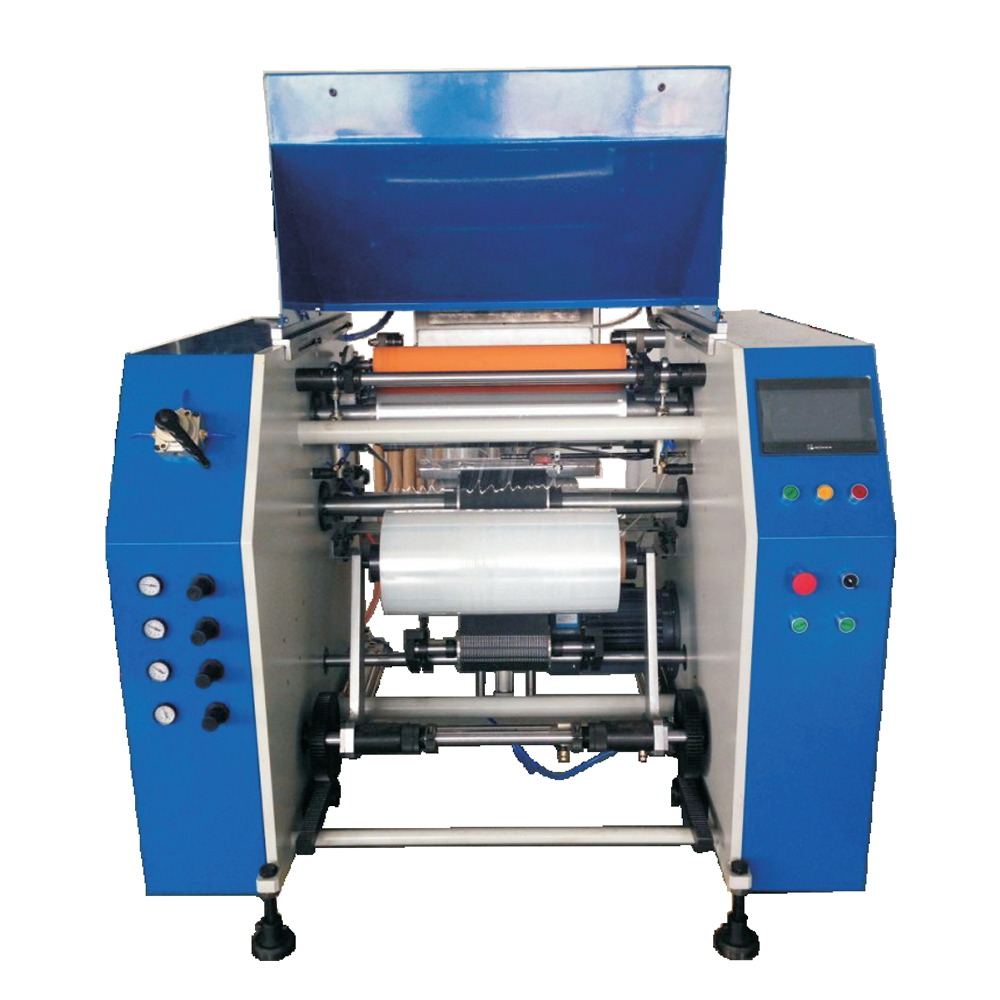

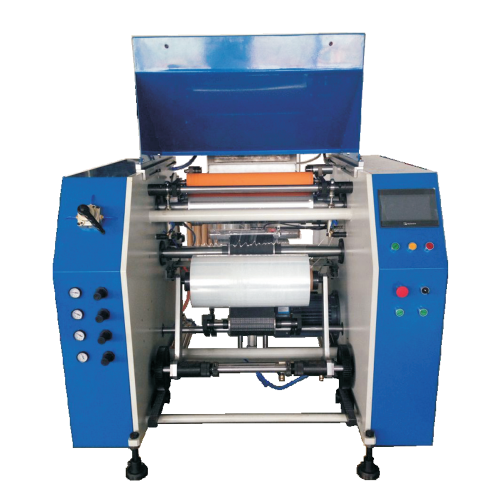

Product Display
The Dimensions of Auto Rewinding Machine
| Model | HTR-H500 |
| Width Of Mother Roll | 300mm - 500mm |
| Width Of Finish Roll | 300mm - 500mm |
| Speed | 1200/min |
| Mother Roll Diameter | 400mm |
| Finish Roll Diameter | Max 150m |
| Core Of Mother Roll | 3" |
| Core Of Finish Roll | 3", 2" (Thickness of paper core≥4mm ) |
| Dimension | 1350*1400* 1500/mm |
| Net weight | 750KG |
