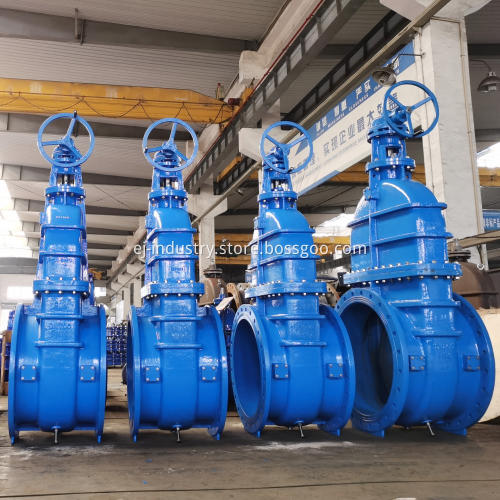

BS5163 Metal Seat Cast Iron Gate Valve

Product Overview

Metal seated wedge gate valve used for pipeline isolation, it provides a full bore flow section likes Ball Valve, low head lose, size range 50-1200mm, ductile iron, non-rising spindle design with gunmetal seats.

Features of Metal Seat Gate Valve.

• Unique lightweight ductile iron design.
• WRAS approved parts.
• Fusion bonded epoxy coated paint - WRAS approved.
• 100% full bore.
• Low maintenance design suitable for buried service.

Service Conditions.

• Potable water, filtered water, dirty water & sewage.
• Working pressure 16 bar.
• Temperature range -10°C to 70°C. (Insulate 0°C and below).

Standards.

• Designed according to EN 1074 part 1 & 2.
• Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16.

Test/Approvals.

• Hydraulic test according to EN 1074-1 & 2 / EN 12266.
• Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar).
• Approved for wastewater / pressure test EN 1074.

Accessories / Options.

• Stem cap / hand wheel.
• ISO mounting flange.
• Anti/clock.
• Extension spindle.
• Tee key.
• Locking device.
• Gearbox bevel or spur.
• Chain wheel.
• Electric and pneumatic actuators.

Note: actuators should be fitted with the valve stem in the vertical position.
