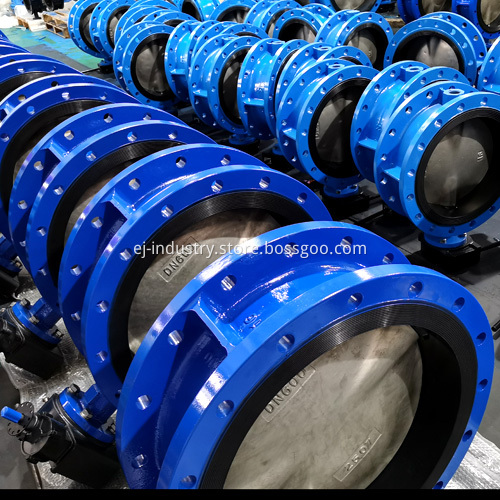

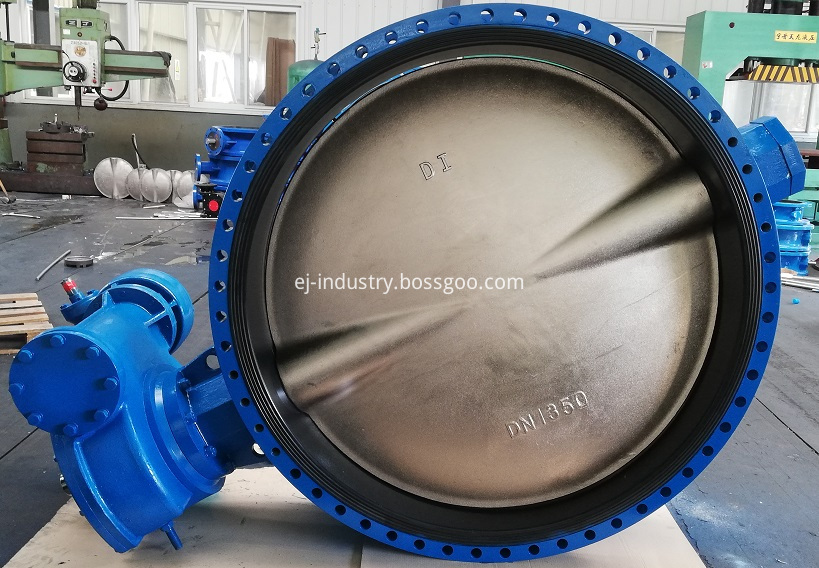

Flanged End Concentric Butterfly Valve
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Ocean, Air, Land
- Port:
- SHANGHAI, Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | API598 |
| HS Code: | 8481804090 |
| Transportation: | Ocean,Air,Land |
| Port: | SHANGHAI,Tianjin |
Product overview
Concentric butterfly valve is a common waterworks industry valve,the structure of rubber/PTFE lining has been designed as protecting of body and seat,and its usually applied to seawater and potable water pipe line.
Applicable Standard
- Design Standard: API 609, MSS SP-67, MSS SP-68, BS 5155
- Face to Face: API 609, ASME B16.10, BS 5155, EN1092
- End Connection: ASME B16.5, ASME B16.47,API605
- Inspection and Test: API 598
Products Range
- Size: 2" ~ 56" (DN50 ~ DN1600)
- Rating: PN10,PN16, ANSI 150lb
- Body Materials: Cast Iron, Ductile Iron,Cast steel,Stainless steel,Ni_Al_Bronze etc.
- Seat: EPDM,PTFE
- Operation: Lever, Gear, Electric, Pneumatic, Hydraulic
Design Features
- Concentric design
- Soft seated
- Wafer, wafer-lug, double flange ends
- ISO top flange
Our main product line is for water works service which include cast iron and ductile iron gate valve, globe valve, check valve, eccentric plug valve and butterfly valve. We provide both types of metal to metal seat and resilient seat.
Our main market is currently in North America, South America, and Europe. The clients cooperate with EJ Group include valve trader, stockist, distributor, and valve manufacturer.
EJ Group's mission is to provide our customer with good quality and 'zero risk' products. Besides good quality control, we have excellent sales team who always focus on providing you good service.
