Ductile Iron Concentric Butterfly Valve
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- SHANGHAI, 天津
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | API598 |
| HS Code: | 8481804090 |
| Transportation: | Ocean,Air |
| Port: | SHANGHAI,天津 |

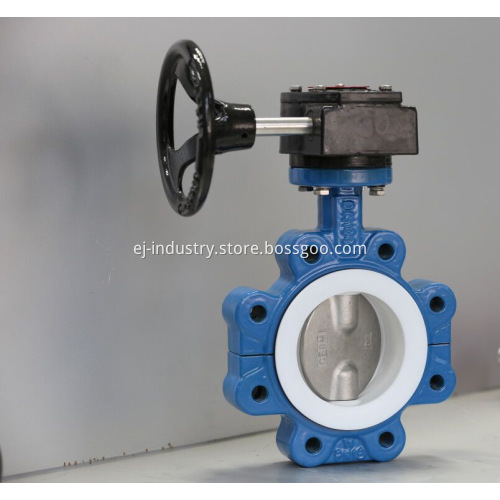

Ductile Iron Concentric Butterfly Valve
Concentric Butterfly valve is used for pipe line isolation and modulation, size range DN50-1000mm, cast iron, stainless steel disc with EPDM seats.
Features:
Various disc materials.
Install between PN10/16 flanges.
WRAS approved parts.
Notched lever, hand wheel gearbox or actuator on request.
Service Conditions:
Potable water, filtered water.
Working pressure 16 bar.
Temperature range -10°C to 95°C. (Insulate 0°C and below).
Standards:
Designed according to EN 593.
Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16.
Test/Approvals:
Hydraulic test according to EN 12266-1, PN10/16.
Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar).
EJ Industry Group Co.,Ltd is a leading professional valves manufacturer in China.
Our main product line is for waterworks industry which include cast iron and ductile iron gate valve, globe valve, check valve, eccentric plug valve and butterfly valve. We provide both types of metal to metal seat and resilient seat.
Our main market is currently in North America, South America, and Europe. The clients cooperate with EJ Group include valve trader, stockist, distributor, and valve manufacturer.
EJ Group's mission is to provide our customer with good quality and 'zero risk' products. Besides good quality control, we have excellent sales team who always focus on providing you good service.
