Automatic Fruit Orange Juice Packaging Processing Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City
Productivity:	2000BPH
Supply Ability:	20Sets/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, CE
HS Code:	8422309090
Transportation:	Ocean
Port:	Shanghai Port

Product Description

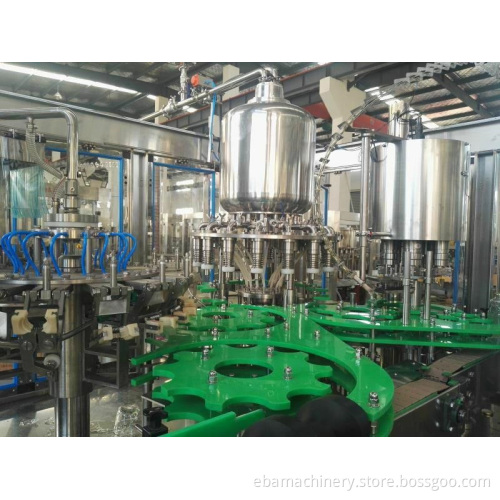

Automatic Fruit Orange Juice Packaging Processing Machine

product description

1)Automatic Fruit Orange Juice Packaging Processing Machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics.

2)The juice filling machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

3)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

4)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

Technical Parameter

Model	RGFC	RGFC	RGFC	RGFC	RGFC	RGFC	RGFC	RGFC
	16/12/6	18/18/6	24/24/8	32/32/10	40/40/12	50/50/15	60/60/15	72/72/18
Rinsing Head	16	18	24	32	40	50	60	72
Filling Head	12	18	24	32	40	50	60	72
Capping Head	6	6	8	10	12	15	15	18
Capacity (500ml)	2000BPH	8000BPH	12000BPH	15000BPH	18000BPH	21000BPH	24000BPH	27000BPH
Pressure of air source	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air consumption	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min	0.8M3/min	1M3/min	1M3/min	1.2M3/min
Pressure of rinse water	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25
	MPa	MPa	MPa	MPa	MPa	MPa	MPa	MPa
Consump-	1t/hour	1.2t/hour	1.2t/hour	2t/hour	2t/hour	3t/hour	4t/hour	5t/hour
tion of rinsing
water
Filling Pressure	0.2-0.3Mpa
Suitable bottle size	300ml-1500ml	300ml-1500ml	300ml-2000ml	300ml-2000ml	300ml-2500ml	300ml-2500ml	300ml-2500ml	300ml-2500ml
	D:50-90mm	D:50-90mm	D:50-115mm	D:50-115mm	D:50-120mm	D:50-120mm	D:50-120mm	D:50-120mm
	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm

Power	2.5KW	3.5KW	4.5KW	5.6KW	6.3KW	7.5KW	11KW	15KW
Weight	2500KG	3000KG	4000KG	5000KG	6000KG	7500KG	8500KG	10000KG
Packing Size	2200×1800	2300×2000	3000×2200	4000×2600	4700×2950	5100×4800	6200×4950	7000×5500
(LWH)(mm)	×2300	×2300	×2800	×2800	×2800	×3000	×3000	×3000

Flow Chart:

A. PET Preforms →Heat preform → Stretch → Blowing → Bottles

B. Stainless steel multistage centrifugal Pump→ Multiple medium filter→ Active carbon filter→Sodium exchange→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Water Pump

C. Air conveyor→ 3-in-1 Bottle water filling machine→Lamp checker→ Conveyor→ Dryer→Labeling machine→ Ink jet code printer→ Shrink packing machine→ Stock

Juice Production Line.webp

Juice Making Machine Juice Filling Machine

Packing and Shipping

Certificate

FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
