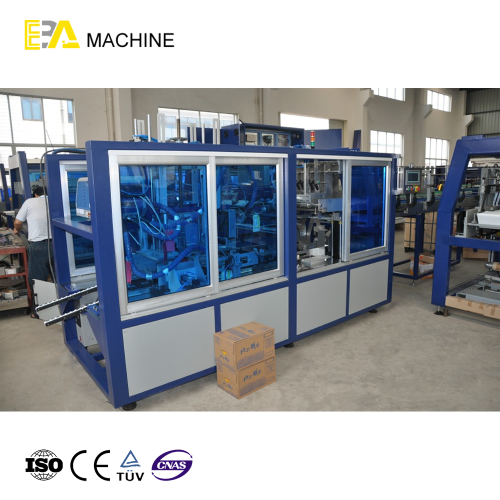

High Speed Carton Box Forming Machine

The carton box forming machine adopt to servo location, PLC controlling, auto operation, main drive adopt to import motor drive, multi degree rotation via chain, chain wheel speed regulator ect. It auto degree is high, reliable controlling, easy to adjust, intelligentize manipulation ect advantage, can widely used for beverage, beer, chemistry, food, medicine ect industry, can do all kind of tin and bottle second time package, can match with auto filling production line.

Main parameter

Product capacity:25carton per minute

Rating power: 10KW

Used power supply: three phase,380V,50Hz

Controlling power supply: 24V DV

Compressor air:1500L per minute, 0.6-0.8Mpa

Hot melting glue solidify time: 1.5-2S

Machine weight: 3500kg

Overall size: L6285*W2582*H2115MM

Bottle entry conveyor size: L3000*W620*1200MM

Package product overall size:Length 350-450.Width 230-330mm, Hieght:85-320mm;

Package bottle diameter::D55-108MM

Cardboard requirement: accord with international GB/T6544-2008

Facility basic summary and requirement:

Facility name	Carton package machine	Power supply	380V,three-phase
Production capacity	10-12pack/ minute	Power supply	220V AC
Product package qualified ratio	＞99.8%	Controlling voltage	24V DC
Hot glue solidify time	≤1.5-2S	Main machine power	10KW
Facility weight	3.5T	Gas consumption quantity	1500 L/min
Machine overall size	628525822115	Compressor air requirement	0.6~0.8MPa
Bottle enter size	30006201200	Package product overall size	Length 350-450.Width 230-330mm, Hieght:85-320mm;
noise	85dB	Circumstance temperature requirement	0-45℃
Circumstance humidity requirement	Usually below 75%RH	Workshop requirement condition	Firm foundation
Facility collocate requirement	Dry, anti-dust, good ventilation good condition
Cardboard specific requirement	Material: corrugate, used carton is three-layer, surface is white 250gram/sm, middle is high strength 150gram/sm. Bottom is cow cardboard 280g/sm; carton each layer not allow have layering phenomenon , leather oid thickness ≥3mm carton indentation thread thickness is moderate, width is not bigger than 2mm carton wave cover via open, close 180degree reciprocate above 5time, carton outside layer not allow to have crack. Inside crack total length total not bigger than 70mm. Carton humidity should ≤11%

Applied bottle type: round bottle, square bottle, alien bottle.

Package product	Package specification	Capacity	Applied bottle type
200ML-400ML	46,45,34or 35,2*3 ect	25carton/minute	PET/Tin/Glass bottle
300ML-500ML	46,45,34 or 35,2*3 ect		PET/Tin/Glass bottle
300ML-600ML	46,45,34 or 35,2*3 ect	25carton/minute	PET/Tin/Glass bottle
500ML-1250ML	34,23 ect	25carton/minute	PET/Tin/Glass bottle
1250ML-2500ML	23,22 ect	25carton/minute	PET/Tin/Glass bottle

Packaging and Shipping

Certificate

FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
