Carbonated Drink Beverage Washing Filling Capping Machine

Carbonated Drink Beverage Washing Filling Capping Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 30 Days

Transportation:: Ocean

Port:: Shanghai Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City
Productivity:	2000BPH
Supply Ability:	20Sets/Month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, CE
HS Code:	8422309090
Transportation:	Ocean
Port:	Shanghai Port

Product Description

Carbonated Drink Beverage Washing Filling Capping Machine

product description

1. Beverage Filling Machine is mainly used for filling carbonated drink.

2. Carbonated drink filling machine combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles.

3. The bottle neck blocking makes the process of changing bottles easily by only adjusting the height of conveyor chain.

4. The filling process adopts the micro-pressure technology,which makes filling process faster and more stable.

5. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

Technical Parameter of small carbonated drink filling machine

Model	DCGF	DCGF	DCGF	DCGF	DCGF	DCGF
	16/12/6	18/18/6	24/24/8	32/32/10	40/40/12	50/50/15	60/60/15
Rinsing Head	16	18	24	32	40	50	60
Filling Head	12	18	24	32	40	50	60
Capping Head	6	6	8	10	12	15	15
Capacity (500ml)	2000-3000BPH	3000-5000BPH	5000-7000BPH	7000-10000BPH	10000-15000BPH	16000-20000BPH	20000-24000BPH
Pressure of air source	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Air consumption	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min	0.8M3/min	1M3/min	1M3/min
Pressure of rinse water	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25	0.2~0.25
	MPa	MPa	MPa	MPa	MPa	MPa	MPa
Consump-	0.5t/hour	0.75t/hour	1t/hour	1.25t/hour	2t/hour	2.5t/hour	3t/hour
tion of rinsing
water
Filling Pressure	0.2-0.3Mpa
Suitable bottle size	300ml-1500ml	300ml-1500ml	300ml-2000ml	300ml-2000ml	300ml-2500ml	300ml-2500ml	300ml-2500ml
	D:50-90mm	D:50-90mm	D:50-115mm	D:50-115mm	D:50-120mm	D:50-120mm	D:50-120mm
	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm	H:150-320mm

Power	4.4KW	5.2KW	6.2KW	6.2KW	7.5KW	11KW	15KW
Weight	2500KG	3500KG	4500KG	6000KG	7200KG	10000KG	11500KG
Packing Size	2250×1650	2600×2000	3000×2200	4000×2200	4700×2250	5500×3500	6500×5500
(LWH)(mm)	×2250	×2250	×2250	×2250	×2500	×2500	×2550

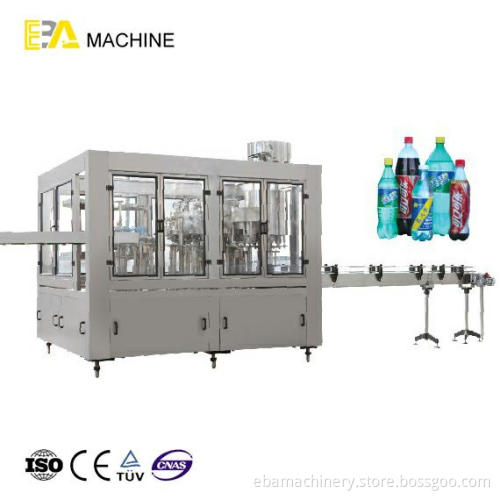

Picture of soft drink filling machine

Carbonated Drink Filling Machine Soft Drink Filling Machine Carbonated Soft Drink Filling Machine

Packing and Shipping

Certificate

FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
