Product Description

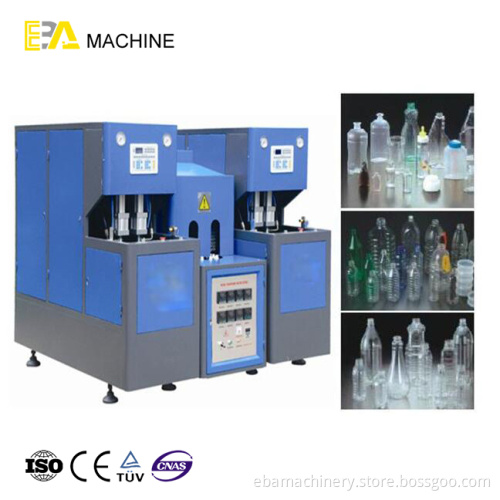

Semi-automatic Bottle Blowing Machine 2000BPH for 500ml

1. Capacity: 1000-2000pcs/hr (based on 750ml)

2. Max volume of product: 2 liter

Technique Parameter of bottle blow molding machine:

Main parameter:
Model	BX-8Y
Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	1000-2000PCS/H
	Preform length	15mm-350mm
	Preform inner diameter	φ5mm-38mm
Molding	Max. mold plate Dimension(L x W)	350x380mm
	Max. mold thickness	180mm
	Clamping force	45KN
	Mold opening stroke	160mm
Machine size and weight	Main machine (L x W x H)	160x60x161cm
	Main machine weight	500Kg
	Heater (L x W x H)	187x63x145cm
	Heater weight	250Kg
	Power	17.5kw

HP air compressor:

Air compressor	Unit	1.2M³/min 30KG
Volume	M³	1.2
Pressure	Kg	30
Speed	r/min	850
Power	KW	15
Overall Dimension	mm	200011001600
Weight	kg	620

Air Cooling Drier:

Refrigeration Air Dryer	Unit	2.0M³/min 3.0Mpa
Flow capacity	Nm³/min	2.0
W.P	MPa	3.0
Inlet Temp.	℃	≤80
Dew point	℃	23
Ambient Temp.	℃	≤38
Power supply	V/HZ	220/50
Compressor power	Kw	0.75
Cold Medium	mm	1050×650×1100
Weight	Kg	120

Air Filter:

Refining-Filter	Unit	2.0M³/min 30Kg
Flow Capacity	M3/Min	2
Max. work pressure	Mpa	3.0
Inlet Temp.	℃	≤50
Cold Medium	mm	750350350
Weight	Kg	20

related product: pet bottle blowing machine, automatic bottle blowing machine, bottle water filling machine

Packaging and Shipping

Certificate

FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
