Automatic Adhesive Sticker Labeling Machine for Top Side
  • Automatic Adhesive Sticker Labeling Machine for Top Side
  • Automatic Adhesive Sticker Labeling Machine for Top Side
  • Automatic Adhesive Sticker Labeling Machine for Top Side
Automatic Adhesive Sticker Labeling Machine for Top Side
Automatic Adhesive Sticker Labeling Machine for Top Side
Automatic Adhesive Sticker Labeling Machine for Top Side

Automatic Adhesive Sticker Labeling Machine for Top Side

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
30 Days
Transportation:
Ocean
Port:
Shanghai Port
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Transportation: Ocean
Port: Shanghai Port
Product Description
Product Description

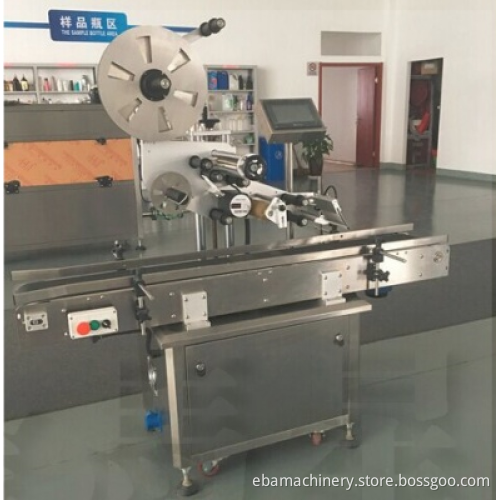

Automatic Adhesive Sticker Labeling Machine for Top is special for stick the label on the top of cap

1. Effect: improve labeling efficiency, accuracy and quality and stability; Avoid many probelms such as low efficiency of labor labeling,skew labeling, bubble, wrinkle, irregular labelingetc; Lower product cost effectively and make the product more beautiful which lead the product to be more competitive.

2. Adopt standard PLC+touch screen+stepper motor+standard sensorelectric control system. High safety coefficient; Complete English writing human-machine interface; has advanced fault remind function and operation teaching function; convenient to use and easy to maintain.

3. The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the laeling position freely( it can be fixed easily after adjustment). All there make the change of different products and winding labels more simple and saving time.

4. Adopt product guide gap elimination structure and label anti-deviation structure. The precision of labeling location achieves ±1mm;

5. Has the automatic detecting function to stop labeling if there is no bottle and automatic correcting function if there is no label. It sovels the miss labeling problem caused by lael oil.

6. Has fault alarm function, production counting function, energy saving function( the machine will be on standby mode when there is no label pass in the certain time), and production amount remind function; Parameter-set protection function;

Option:1. hot printer/code machine  2. Automatic feeding function( according to product)  3. Automatic feeding function( according to product)  4. Add labeling position   5. Other function( as customer's requirement)


Technical Parameter of Automatic Labeler Machine

Labeling precision ±1mm( exclude the product and label deviation)
Labeling speed 600-1200BPH(related to product size)
Product size applicable 15<width<150mm, length>10mm
Label size applicable 15<width<150mm, length>10mm
Size of whole machine 1600*800*1400mm(Length*width*height)
Power supply 110/220V   50/60HZ
Weight 180kg


Main Electrical Parts Configuration

Item Brand
PLC JAPAN MITSUBISHI
Touch screen TAIWAN EVEIW
Labeling motor GERMAN, KINCO
Labeling motor drive GERMAN, KINCO
Labeling sensor JAPAN, PANASONIC
Product sensor JAPAN, PANASONIC
Conveyor motor TAIWAN, HAITEC
Frequency converter TAIWAN, SANCH


Packaging and Shipping

Water Filling


Certificate

AaBbCc


FAQ

Q: How about the spare parts?

A: We will send one year enough easy broken spare parts together with the machines, shipping together. During the warranty time, we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?

A: According your machines order, we will send one or two engineers to your plant, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? How much the cost?

A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back accommodation and USD80/day/person.

Q: When can I get my machine after I paid?

A: Normally production time is around 30-60days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What`s your guarantee or warranty of the quality if buy your machines?

A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?

A:We are an original equipment manufacturer so that we can provide you high quality machines in reasonable price. Welcome to visit us.
