ZNC Die EDM Sinker Machine DM550
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Transportation: | Ocean,Land,Air |
|---|---|
| Port: | Shanghai |

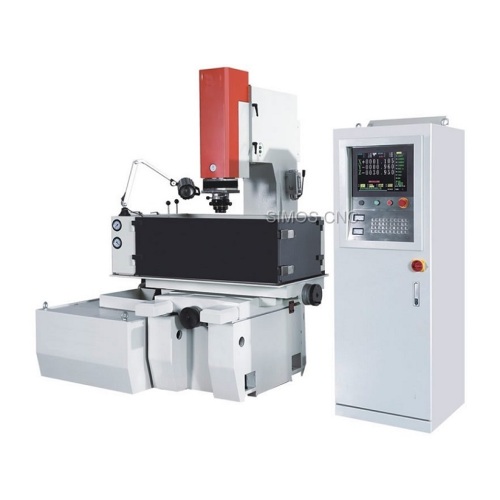

ZNC Die EDM Sinker Machine DM550 Machine
Machine Construction
The machine is designed by special CAD software featured good structure and high precision
Z axis adopt high precision SANYO DC servo motor
X/Y/Z axis adopt Taiwan ball screw
X,Y axis adopt high precision bearing
Oil pump imported from Italy with big power
It suits to process cavity, hole and special shape by copper, graphite, steel, tungsten steel, hard alloy steel material
Controller System
Manual type: input current and parameters according your experience
Automatic processing type: machine automatic processing according required roughness, machining area size and depth
Intelligent editor type: the system will set parameters after you input electrode shape, electrode material, workpiece material, processing area size, roughness and depth
System adjust parameters automatically if machining is not steady
Automatic checking carbon deposition and adjust parameters
Multiple set selections to process the thin slice and large-sized workpiece
Fire-prevention and liquid level control automatically
Metric and Inch
DM550 ZNC Die Mould EDM Sinker Machine Specification
|
Item |
Unit |
DM350 |
DM450 |
DM550 |
DM650 |
|
Machine Size |
mm |
1350*1300*2200 |
3260*1800*2500 |
4000*2500*2600 |
4600*3200*2700 |
|
Machine weight |
kg |
1350 |
1750 |
2500 |
3500 |
|
Table travel (X, Y, Z) |
mm |
350*220*250 |
450*350*200 |
550*450*250 |
650*550*400 |
|
Auxiliary stroke (Z axis) |
mm |
|
250 |
300 |
300 |
|
Table size |
mm |
600*320 |
700*400 |
800 * 500 |
1000 * 600 |
|
Electrode plates to the table maximum distance |
mm |
570 |
680 |
820 |
900 |
|
Maximum table weight |
kg |
500 |
800 |
1000 |
2500 |
|
Work tank size |
mm |
920*570*350 |
1080*660*400 |
1300*770*550 |
1720*1000*620 |
|
Max Current |
A |
50 |
50 |
50 |
50 |
|
Tank size |
mm |
21350*800*480 |
1350*800*480 |
1600*900*485 |
2000*2000*500 |
|
The maximum processing efficiency |
mm² / min |
≥600 |
≥600 |
≥600 |
≥600 |
|
Minimum electrode wear |
|
≤0.1% |
≤0.1% |
≤0.1% |
≤0.1% |
|
Best surface roughness |
Ra |
≤0.2um |
≤0.2um |
≤0.2um |
≤0.2um |
|
Maximum electrode weight |
kg |
50 |
60 |
100 |
200 |
|
Pulse Power Specifications |
|
SC-50C |
SC-50C |
SC-50C |
SC-50C |
|
Machine input power |
kw |
7 |
9 |
11 |
11 |
