High Precision Mirror Grade CNC EDM Sinker Machine
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Transportation: | Ocean,Land,Air |
|---|---|
| Port: | Shanghai |

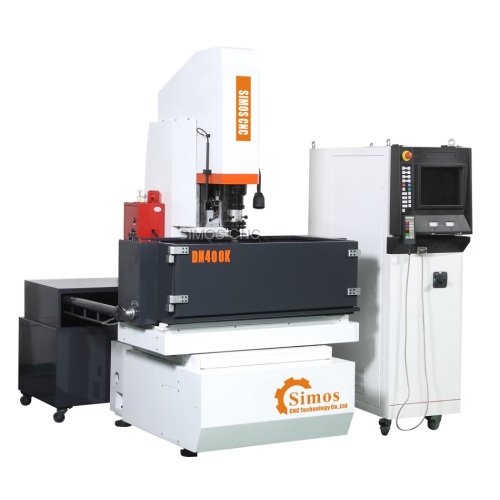

CNC Die EDM Sinker Machine DM400K
• High Performance
• Roughness of Ra≤0.08um
• Electrode Consumption 0.01%
• CNC Mirror Sinker EDM
• Economic
• Precision ± 0.005mm
• Efficiency≥500mm3 / min
DM series CNC die EDM sinker machine support X,Y,Z,C 4 axis simultaneous function.
it feature high precision, high efficiency, low consumption and high surface finishing.
The controller system technology is from Japan Sodick. Separate controller design different with G series EDM sinking machine, customers have more choose what controller they need.
The machine adopt famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality.and it use marble worktable very high precision
CNC Die EDM Sinker Machine DM400K Specification
Main Part List
| No. | Parts | Brands | Orginal | ||||
| 1 | linear guideway | Hiwin | Taiwan | ||||
| 2 | Ball screw | Hiwin | |||||
| 3 | X,Y,Z motor | Panasonic AC servo motor and driver.Power 400W/2500 | Japan | ||||
| 4 | Main board | AAEON,Industrial garde | Taiwan | ||||
| 5 | Capacitance | Kingbox | Japan | ||||
| 6 | Circuit breaker | Schneider | France | ||||
| 7 | LCD | BOE,Industrial garde | China | ||||
| 8 | Power Sup | MeadWell,Industial garde | Taiwan | ||||
| 9 | Contactor | T-Verter,Industrial garde | Taiwan | ||||
| 10 | Air switch and limit switch | Omron | Japan | ||||
| 11 | Communications wire and cable | Hitachi | Japan | ||||
| 12 | Connector | Nanshi | China | ||||
| 13 | IC chip | NXP / ATMEL / ALTERA | |||||
| 14 | Diodes, transistors | Vishay | American | ||||
| 15 | Three rectifier bridge | SANTEX | Japan | ||||
| Emergency stop | IDEC | Japan | |||||
| 16 | Intermediate relay | Japan | |||||
| 17 | Opto coupler | Toshiba | Japan | ||||
| 18 | Volt-Ammeter | YOKOWAGA | Japan | ||||
