Mirror Grade CNC EDM Sinker Machine

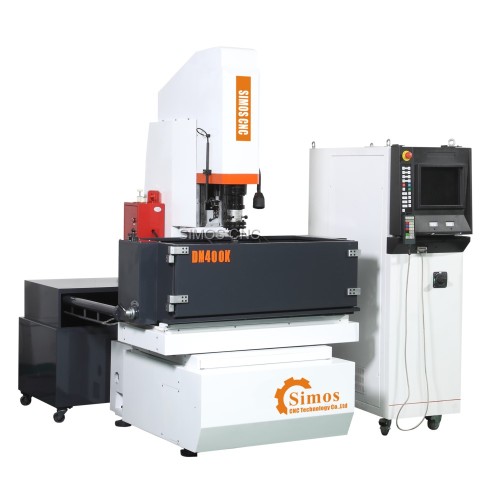

CNC Die EDM Sinker Machine DM300K

Automatic machining function

Automatic positioning function

Automatic arc circuit

Oil height control, oil temperature control, automatic fire control

Power failure restoration function

DM series CNC die EDM sinker machine feature high precision, high efficiency, low consumption, high surface finishing.

Separate controller design different with G series EDM sinking machine, customers have more choose what controller they need.

The machine adopt famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality and it use marble worktable, very high precision

• High Performance

• Roughness of Ra≤0.08um

• Electrode Consumption 0.01%

• CNC Mirror Sinker EDM

• Economic

• Precision ± 0.005mm

• Efficiency≥500mm3 / min

Item                                DM300K

Machine Size                  2100*2300*2300mm

Machine Weight              2000kg

Machine Power               9kw

Worktable Size                600*400mm

Loading                           400kg

Machining area Size        950*620*360mm

Distance from spindle to table    565mm

X,Y,Y Travel                     300*210*270mm

Max Current                     50A(75,100A)

Max electrode weight        25kg

Max speed                        ≥500 mm²min

Drive type                         AC servo direct drive

Min electrode wear rate    0.01%

Roughness                       Ra≤0.08um

Min drive unit                    1um

Coordinate Quantity          60

Display                             15-inch LCD screen,Touch screen

Each Axis Compensation  Steps error compensation, backlash compensation for each axis separately

Each axis Resolution         0.4

Interpolation Method          lines, arcs, spirals, etc

Processing Discharge Conditions  Registration function      1000 conditions (C000-C999)

Input Range            + 9999.999 ~ -9999.999

Offset Function       Set 1000pcs offset  H000-H999

 Parts                                 Original

XYZ guideway                         Taiwan Hiwin linear guideway

XYZ Ball screw                        Taiwan Hiwin ball screw

X,Y,Z motor                              Panasonic AC servo motor and driver.

Main board                             Taiwan AAEON Industrial computer

Capacitance                            Japan Kingbox

Circuit breaker                        Schneider

LCD                                 Taiwan AUO Industrial LCD

Power                               Taiwan MeadWell

Contactor                         Taiwan T-Verter

Air switch and limit switch                   Omron

Communication wire and cable          Japan Hitachi

Connector                             Nanshi

IC chip                                   NXP / ATMEL / ALTERA

Diodes, transistors                America Vishay

Three rectifier bridge            Japan SANTEX

Emergency stop                     Japan IDEC

Intermediate relay                  Japan IDEC IZUMI

Optocoupler                           Japan Toshiba

Volt-Ammeter                          Japan YOKOWAGA
