High Speed CNC Wire Cut EDM Machine
-
USD9000≥1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500sets |
| Supply Ability: | 500sets |
| Certificate: | CE |
| HS Code: | 8456301090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |

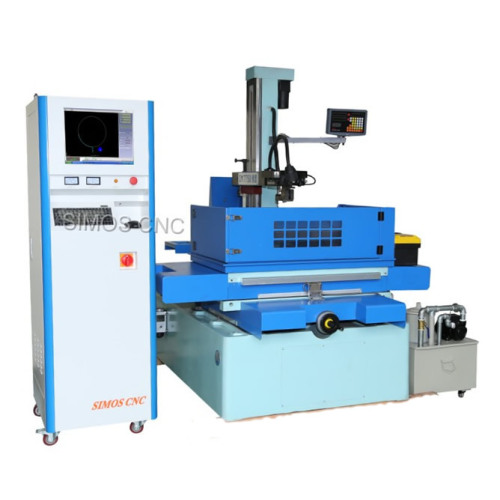

DK7750 Wire Cut EDM Machine
1.Waterproof copper pulley
2.Manual lubrication
3.X and Y DRO
4.Auto wire tension system
5.traditional up and down arms
6.NMC C3 ball screw
7.Hiwin linear guideway(optional)
8.Special frequency converter Wire EDM
9.High Performance industrical computer
10.LED working lamp
11. Automatic parameter generating system
12. +-3 cutting degree
13.Window XP with AutoCut(AutoCAD inside)
Wire Cut EDM Machine Accuracy (according to the standard GB 7926-87)
| Item/model | DK7735 | ||||||
| Movement vector of X, Y axes | 0.005mm | ||||||
| Positioning precision of X axis | ≤0.015mm | ||||||
| Repetitive positioning precision of X axis | 0.002mm | ||||||
| Positioning precision of Y axis | ≤0.02mm | ||||||
| Repetitive positioning precision of Y axis | 0.002mm | ||||||
| Perpendicularity of the wire to the working table | ≤0.01mm | ||||||
| Radial jumpiness of wire winding drum | ≤0.03mm |
Wire Cut EDM Machine configuration
| System | Windows XP-AutoCut system | ||||||
| XY axis ball screw | China famous NMC C3 ball screw | ||||||
| XY axis linear guide way | Steel guide way | ||||||
| wire swing guide way | Steel guide way | ||||||
| converter | KY special for Wire EDM | ||||||
| Capacitance | Suzhou Suling | ||||||
| Bearing | NSK | ||||||
| Electric Accessories | China famous brand | ||||||
| Wire swing motor | Sinaer Motor | ||||||
| Industrial computer | Segotep | ||||||
| DRO | SINO | ||||||
| Lingt | LED | ||||||
| High frequency | SIMOS | ||||||
| Machine casting | Resin Sand Casting |
DK7750 Wire Cut EDM Machine Specification
Model
DK7725
DK7735
DK7745
DK7750
Worktable size
520×340
740×500
840×600
1000×670
Worktable
travel
320×250
450×350
550×450
630×500
Max cutting
height
300
400
600
800
Max cutting taper
6°/80mm
6°/80mm
6°/30°/80mm
6°/30°/60°/90°/80mm
Max Loading
200
300
400
800
Max cutting
speed
300mm2/min
300mm2/min
300mm2/min
300mm2/min
Cutting
accuracy
±0.005
±0.005
±0.005
±0.005
Max cutting
current
12A
12A
12A
12A
Best cutting
roughness
1.4um
1.4um
1.4um
1.4um
Water tank
volume
90L
90L
90L
90L
Machine power
2.5KVA
2.5KVA
2.5KVA
2.5KVA
Standby power
0.3KVA
0.3KVA
0.3KVA
0.3KVA
Machine weight
1200
1500
1700
2300
Machine size
1480*1010*1400
1600*1270*1700
1700*1430*1700
2000*1750*2000
Model
DK7763
DK7780
DK77100
DK77120
Worktable size
1180×770
1360×990
1600*1170
1900×1300
Worktable
travel
800×630
1000×800
1200*1000
1400×1200
Max cutting
height
800
800
800
1000
Max cutting taper
6°/30°/60°/90°/80mm
6°/30°/60°/90°/80mm
6°/30°/60°/90°/80mm
6°/30°/60°/90°/80mm
Max Loading
1000
1500
2000
3500
Max cutting
speed
300mm2/min
300mm2/min
300mm2/min
300mm2/min
Cutting
accuracy
±0.0075
±0.0075
±0.01
±0.01
Max cutting
current
12A
12A
12A
12A
Best cutting
roughness
1.4um
1.4um
1.4um
1.4um
Water tank
volume
90L
90L
90L
90L
Machine power
2.5KVA
2.5KVA
2.5KVA
2.5KVA
Standby power
0.3KVA
0.3KVA
0.3KVA
0.3KVA
Machine weight
3500
5000
6300
7500
Machine size
2200*1980*1900
2500*2100*2000
3000*2550*2300
4200*3600*2200
