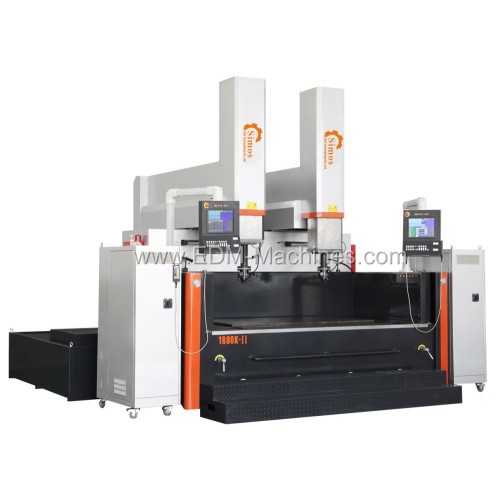

Double spindle CNC Die EDM Sinker Machine DM1680K-II

2 Spindle CNC Die EDM Sinker Machine DM1680K-II

SIMOS CNC EDM double spindle CNC die EDM sinker machine

Worktable fixed type CNC Sinker EDM machine

Sodick EDM technology support controller system

Famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality

The system with a lot advanced technology for example automatic process function, automatic positioning function, automatic clean arc and short circuit. It includes tool raise high-speed adaptive system, discharge pulse detection system and energy pulse control system to short machining time and get best precision

2 Spindle CNC Die EDM Sinker Machine DM1680K-II Specification

Parts                                 Original

XYZ guideway                         Taiwan Hiwin linear guideway

XYZ Ball screw                        Taiwan Hiwin ball screw

X,Y,Z motor                              Panasonic AC servo motor and driver.

Main board                             Taiwan AAEON Industrial computer

Capacitance                            Japan Kingbox

Circuit breaker                        Schneider

LCD                                 Taiwan AUO Industrial LCD

Power                               Taiwan MeadWell

Contactor                         Taiwan T-Verter

Air switch and limit switch                   Omron

Communication wire and cable          Japan Hitachi

Connector                             Nanshi

IC chip                                   NXP / ATMEL / ALTERA

Diodes, transistors                America Vishay

Three rectifier bridge            Japan SANTEX

Emergency stop                     Japan IDEC

Intermediate relay                  Japan IDEC IZUMI

Optocoupler                           Japan Toshiba

Volt-Ammeter                          Japan YOKOWAGA
