Qualtiy&Low Price CNC Wire Cut EDM Machine
-
USD9000≥1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500sets |
| Supply Ability: | 500sets |
| Certificate: | CE |
| HS Code: | 8456301090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |

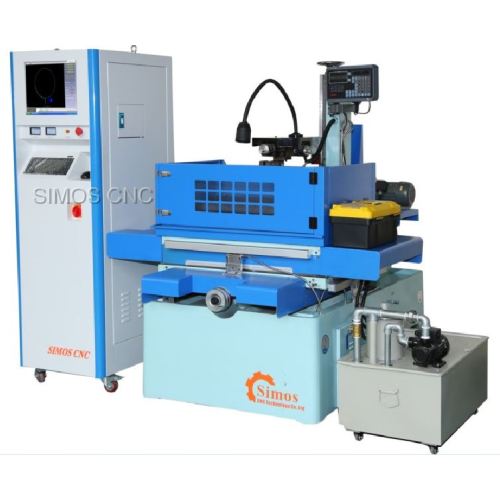

DK77 CNC Wire Cut EDM Machine
| 1.Window XP with AutoCut(AutoCAD inside) | |||||||
| 2.Automatic parameter generating system | |||||||
| 3.X and Y DRO | |||||||
| 4.Auto wire tension system | |||||||
| 5.traditional up and down arms | |||||||
| 6.NMC C3 ball screw | |||||||
| 7.Hiwin P garde linear guideway(optional) | |||||||
| 8.Transducer special for Wire EDM | |||||||
| 9.Segotep industrical computer | |||||||
| 10.LED working lamp | |||||||
| 11.Manual lubrication center | |||||||
| 12. +-3 cutting degree | |||||||
| 13.Waterproof copper pulley |
DK77 CNC Wire Cut EDM Machine Specification
Model
DK7725
DK7735
DK7745
DK7750
Worktable size
520×340
740×500
840×600
1000×670
Worktable travel
320×250
450×350
550×450
630×500
Max cutting height
300
400
600
800
Max cutting taper
6°/80mm
6°/80mm
6°/30°/80mm
6°/30°/60°/90°80mm
Max Loading
200
300
400
800
Max cutting speed(mm2/minute)
300
300
300
300
Cutting accuracy
±0.005
±0.005
±0.005
±0.005
Max cutting current
12A
12A
12A
12A
Best cutting roughness
1.2um
1.2um
1.2um
1.2um
Water tank volume
90L
90L
90L
90L
Machine power
2.5KVA
2.5KVA
2.5KVA
2.5KVA
Standby power
0.3KVA
0.3KVA
0.3KVA
0.3KVA
Machine weight
1200
1500
1700
2300
Machine size
1480*1010*1400
1600*1270*1700
1700*1430*1700
2000*1750*2000
Machine precision (according to the standard GB 7926-87)
Item/model
DK7735
Movement vector of X, Y axes
0.005mm
Positioning precision of X axis
≤0.015mm
Repetitive positioning precision of X axis
0.002mm
Positioning precision of Y axis
≤0.02mm
Repetitive positioning precision of Y axis
0.002mm
Perpendicularity of the wire to the working table
≤0.01mm
Radial jumpiness of wire winding drum
≤0.03mm
Machine configuration
System
Windows XP-AutoCut system
XY axis ball screw
China famous NMC C3 ball screw
XY axis linear guide way
Steel guide way
wire swing guide way
Steel guide way
converter
KY-II special for Wire EDM
Capacitance
Suzhou Suling
Bearing
NSK
Electric Accessories
China famous brand
Wire swing motor
Sinaer Motor
Industrial computer
Segotep
DRO
SINO
Lingt
LED
High frequency
SIMOS
Machine casting
Resin Sand Casting
Machine Controller
Machine system operation
Machine Featuer
Machine Water Tank
