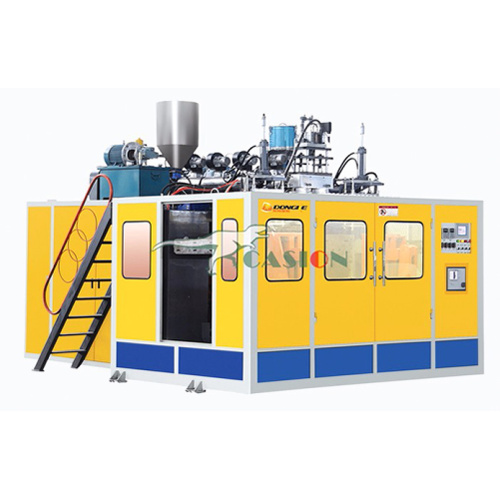

Lubricant Blow Molding Machine

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 60 Days

Transportation:: Ocean, Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Payment Type:	T/T
Incoterm:	FOB,CIF
Transportation:	Ocean,Land

Product Description

EXTRUSION UNIT
Screw mode: Gradually changed screw with same distance and different deep;
Diameter of screw:100mm,L/D:24/1;
Material of screw: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2;
Material of barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2;
Drive mode: American AMERSON converter instrument + Hard gear surface decelerator;
Drive power: 75KW;
Plasticizing capacity: 180Kg/hr;
Temperature controlling: Adopt GEFRAN automatic temperature control. Temperature controlling precision: Various ±1%;
Mode of heating: Cast-aluminum heater with heater preserving and protecting cover of stainless steel;
Heating power: 21.4KW;
Zones of heating: 4 zones;
Mode of cold: Automatic blowing, three blowers. Power: 90W×4;

Lubricant Blow Molding Machine/Blow Moulding Machine

We are specializing in large blow moulding machine from 1-10000L,1-3layers,1000L one-three layers Water Tank Blow Moulding Machine,2000L one-three layers Pet Blow Moulding Machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.

With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 0.5L-30L,upto 1-3layers.

Lubricant Blow Molding Machine

Technical Specification/ 5-10L, 10-25L

Max.product Volume	( L )	30
Screw Diameter	(mm)	90
Screw L / D ratio	(L/D)	25
Screw drive power	(KW)	37
Screw Heating capacity	(KW)	16
Extruder DC motor Power	(KW)	55
NO.of heating zone	(zone)	4
Output of HDPE	(kg/h)	150-200
Oil pump drive power	(KW)	18.5
Clamping force	(KN)	270
Platen distance	(mm)	200-660
Max.Size of Mold	( WxH )	450x660
Capacity	( L )	---
Max.Die diameter	(mm)	200
Die heat capacity(Single)	(KW)	12
NO.of heating zone	(zone)	4
Central distance of bi-die	(mm)	100-270
Max.Die diameter bi-head	(mm)	180
NO.of heating zone	(zone)	8
Heating capacity	(KW)	18
Cooling water pressure	(Mpa)	0.4
Water consumption	(L/min)	80
Total Power	(KW)	65
Size of machine	(LxWxH)m	5x3.5x2.8
Weight of machine	(TON)	12
Dry cycle	(pc/h)	600
