oil buckets Extrusion blow molding machine

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 60 Days

Transportation:: Ocean, Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB,CIF
Transportation:	Ocean,Land

Product Description

Characteristics of Blow Moulding Machine
1.The machine adopts human-computer interface to control the whole working procedures, auto-loading, auto blowing, auto dropping. Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, If former step is not finished, alarm automatically and do not work. PLC displays problem position.
2.Fast speed, accurate position, smooth action.
3.According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according to the bottle size to save the time.
4.Far infrared heater lamps have strong penetrations , preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each group of temperature separately.
5.Particular preheater design makes preform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
6.The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
7.Special recycling installation for high pressure air reduce the energy consumption.
8.Operation consists of manual and automatic procedure, manual operation for assembly and test, automatic operation for production.
9.Production workmanship process is fully automatic to make best quality and pollution-free. it holds less investment, high efficiency, easy operation, simple repair, safety etc.

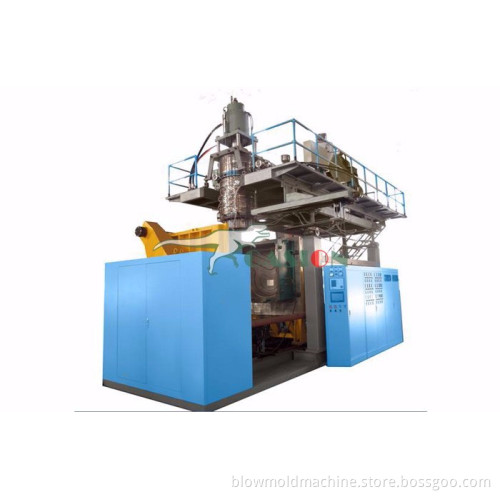

Large Multi Layerbucket Blow Molding Machine

We are specializing in large blow moulding machine from 200-5000L,1-3layers,1000L one-three layers blow moulding machine,2000L one-three layers blow moulding machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.

With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 250L-3000L,upto 2-4layers.

2Layers blow moulding machine

Specification		1000L	2000L	3000L	5000L
Max container capacity	L	1000	2000	3000	5000
Machine Weight	T	32	43	49	60
Machine Dimension(LWH)	M	76.55	876.5	987.5	1177.5
Total Power	Kw	196	277	327	482
Average Power Consumption	Kw	127	180	212	313
Die Head
Accumulator Volume	KG	35	60	80	150
Number of Heating Zone	Zone	11	10	12	12
Power of Die Heating	Kw	55	80	100	120
Max. Die-pin Diameter	mm	450	600	800	820
Extruder Unit
Screw Diameter	mm	100/100	120/120	130/130	150/150
Screw L/D Ratio	L/D	25/1	25/1	25/1	25/1
Number of Heating Zone	Zone	8	10	10	12
Heating Power	Kw	44	55	55	72
Max. Melting Capacity	KG/Hr.	370	470	540	670
Extruder Motor Power	Kw	30/30	45/45	55/55	110/110
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1500*2000	1700*2200	2000*2400
Distance Between Platen	mm	800~2400	1000~3000	1200~3400	1300~3600
Platen Size(W*H)	mm	1500*1500	1800*2000	2000*2200	2200*2400
Clamping Force	KN	800	1200	1200	1800
Hydraulic System
Main Oil Pump Power	Kw	30	45	55	55
Servo Oil Pump Power	Kw	7.5	7.5	7.5	15
Thickness Controll System	Point	100	100	100	100

3Layers blow moulding machine

Specification		1000L	2000L	3000L	5000L
Max container capacity	L	1000	2000	3000	5000
Machine Weight	T	38	48	59	75
Machine Dimension(LWH)	M	77.55.5	886.5	977.5	1087.5
Total Power	Kw	287	336	417	526
Average Power Consumption	Kw	186	218	271	341
Die Head
Accumulator Volume	KG	35	60	80	150
Number of Heating Zone	Zone	11	11	13	16
Power of Die Heating	Kw	88	100	130	160
Max. Die-pin Diameter	mm	450	600	800	820
Extruder Unit
Screw Diameter	mm	100/110/100	110/120/110	120/130/120	130/138/130
Screw L/D Ratio	L/D	25/1	25/1	25/1	25/1
Number of Heating Zone	Zone	13	13	15	16
Heating Power	Kw	65	65	80	96
Max. Melting Capacity	KG/Hr.	370	470	540	600
Extruder Motor Power	Kw	30/30/37	37/37/45	45/45/45	55/55/90
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1500*2000	1700*2200	2000*2400
Distance Between Platen	mm	800~2400	1000~3000	1200~3400	1300~3600
Platen Size(W*H)	mm	1500*1500	1800*2000	2000*2200	2200*2400
Clamping Force	KN	800	1200	1200	1800
Hydraulic System
Main Oil Pump Power	Kw	30	45	55	55
Servo Oil Pump Power	Kw	7.5	7.5	7.5	15
Thickness Controll System	Point	100	100	100	100

4Layers blow moulding machine

Specification		1000L	2000L	3000L	5000L
Max container capacity	L	1000	2000	3000	5000
Machine Weight	T	44	60	70	85
Machine Dimension(LWH)	M	97.55.5	1086.5	1187.5	1288
Total Power	Kw	351	441	532	630
Average Power Consumption	Kw	228	286	346	409
Die Head
Accumulator Volume	KG	35	60	80	150
Number of Heating Zone	Zone	12	14	16	18
Power of Die Heating	Kw	12	140	160	180
Max. Die-pin Diameter	mm	450	600	800	850
Extruder Unit
Screw Diameter	mm	90/100/100/90	100/110/110/100	110/120/120/110	120/130/130/120
Screw L/D Ratio	L/D	25/1	25/1	25/1	25/1
Number of Heating Zone	Zone	18	18	20	20
Heating Power	Kw	90	99	110	120
Max. Melting Capacity	KG/Hr.	370	470	540	670
Extruder Motor Power	Kw	22/22/30/30	30/30/45/45	45/45/55/55	55/55/75/75
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1500*2000	1700*2200	2000*2400
Distance Between Platen	mm	800~2400	1000~3000	1200~3400	1300~3600
Platen Size(W*H)	mm	1500*1500	1800*2000	2000*2200	2200*2400
Clamping Force	KN	800	1200	1200	1800
Hydraulic System
Main Oil Pump Power	Kw	30	45	55	55
Servo Oil Pump Power	Kw	7.5	7.5	7.5	15
Thickness Controll System	Point	100	100	100	100
