Water Tank Plastic Blow Molding Machine

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 60 Days

Transportation:: Ocean, Land

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB,CIF
Transportation:	Ocean,Land

Product Description

Features
1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 80mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5. Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle

IBC Barreol Blw Molding Machine

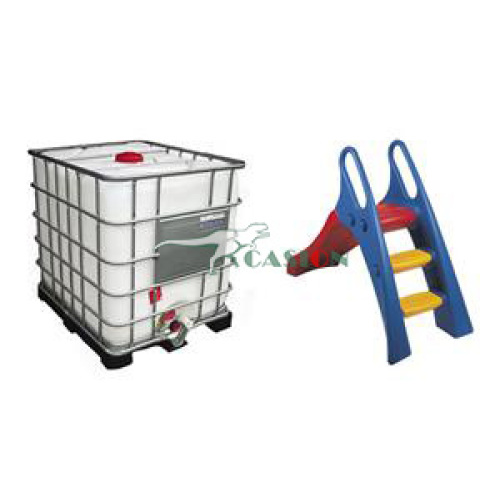

We are specializing in large blow moulding machine from 200-5000L,1-3layers,1000L one-three layers Blow Moulding Machine Accessories,2000L one-three layers blow moulding machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.

With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 250L-3000L,upto 2-4layers.

Specification		Double L-ring	IBC
Max container capacity	L	235	1000
Machine Weight	T	21	30
Machine Dimension(LWH)	M	765	765.5
Total Power	Kw	222	326
Average Power Consumption	Kw	144	212
Die Head
Accumulator Volume	KG	16	50
Number of Heating Zone	Zone	5	6
Power of Die Heating	Kw	40	50
Max. Die-pin Diameter	mm	250	600
Extruder Unit
Screw Diameter	mm	125	120/120
Screw L/D Ratio	L/D	28/1	28/1
Number of Heating Zone	Zone	5	8
Heating Power	Kw	27.5	44
Max. Melting Capacity	KG/Hr.	300	500
Extruder Motor Power	Kw	110	90/90
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1200*1500
Distance Between Platen	mm	800~2400	800~2400
Platen Size(W*H)	mm	1450*1500	1450*1500
Clamping Force	KN	800	1200
Hydraulic System
Main Oil Pump Power	Kw	30	45
Servo Oil Pump Power	Kw	7.5	7.5
Thickness Controll System	Point	100	100
