Product Description

Technology advantage:
1.Special design,high rigid compound die structure
2.Wide adaptability, suitable for every type Plastic Mould thickness
3.Adjust convenience
4.No mould rolling out
5.More energy conservation,no need much air supply
6.High burnish principal axis, with very precise polishing, light action and low noise.
7.Short mould stroke,quick action
8.All casting, with long timing process,very small transformation,can meet your precise request 100%
9.Hig dead-weigh, ensure the steady during the opeartion

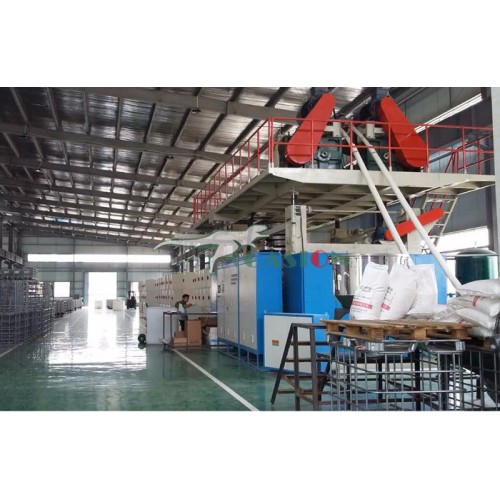

IBC Barreol Blw Molding Machine

We are specializing in large blow moulding machine from 200-5000L,1-3layers,1000L one-three layers Plastic Blow Molding Machine,2000L one-three layers Water Tank Blow Moulding Machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.

With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 250L-3000L,upto 2-4layers.

Specification		Double L-ring	IBC
Max container capacity	L	235	1000
Machine Weight	T	21	30
Machine Dimension(LWH)	M	765	765.5
Total Power	Kw	222	326
Average Power Consumption	Kw	144	212
Die Head
Accumulator Volume	KG	16	50
Number of Heating Zone	Zone	5	6
Power of Die Heating	Kw	40	50
Max. Die-pin Diameter	mm	250	600
Extruder Unit
Screw Diameter	mm	125	120/120
Screw L/D Ratio	L/D	28/1	28/1
Number of Heating Zone	Zone	5	8
Heating Power	Kw	27.5	44
Max. Melting Capacity	KG/Hr.	300	500
Extruder Motor Power	Kw	110	90/90
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1200*1500
Distance Between Platen	mm	800~2400	800~2400
Platen Size(W*H)	mm	1450*1500	1450*1500
Clamping Force	KN	800	1200
Hydraulic System
Main Oil Pump Power	Kw	30	45
Servo Oil Pump Power	Kw	7.5	7.5
Thickness Controll System	Point	100	100
