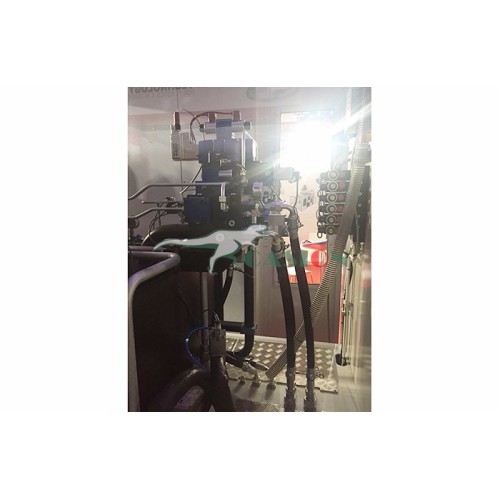

Hydraulic System Of Blow Moulding Machine

Standard features:
1.Double-acting applications;
2.Heavy duty welded construction;
3.Standard color: Black;
4.All Seals: Manufactured to US specification;
5.Ports: SAE(NPTF port or other can be available);
6.100% hydro-pressure test;
7.Rod surface treatment: Superior quality chrome plated;
8.Standard: B type piston(optional: A type piston);
9.Apply LOCTITE to rod end thread.

1.computer controlled sync jak up system
2.single operation ,computer controlled friendly human computer interface
3.coupled with high precision electronic Automatic Industrial Control System devices and displacement,pressure detection system.
4.closed loopcontrol system with frequency Plc Automatic Control System,synchronization accuracy of up to ±0.25 mm.
5.two speed output ,quickly retract for plunger rod
6.valae controlled auto balance function
7.providing the data records, displaying illustration and printing functions
8.vehicle mounted design, convenient for moving

High prssure oil comes into the cylinder,working on the piston,pushing the pistion down,the piston is connected to the crankshaft,the the crankshaft will turn. Together with oil distributor.When piston walks to its lowest position, the cylinder will get through with the oil tank,then the piston goes back. Total 5 pistons work one by one, the crankshaft will turn continually. When the working oil flows oppositely,the shaft will turn in another direction.

Hydraulic System

Brand : KHX-MACHINE

Product origin : SUZHOU CHINA
