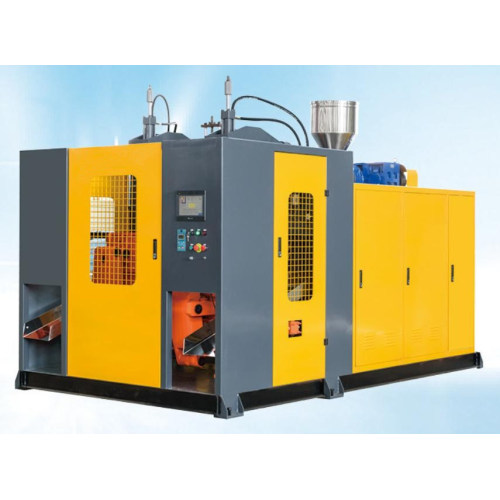

Double-work Station High-barrier Blow Molding Machine
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Transportation: | Ocean,Land |
Chemical Bucket Blow Molding Machine
1. It can be installed with programmable computer control and realize whole line intelligentize.
2. Using fameus server driver, special close loop calculated solution best energy saving.
3. The efficiency is improved significantly.
4. Provide products with high stability for customers.
We are specializing in large blow moulding machine from 200-5000L,1-3layers,1000L one-three layers blow moulding machine,2000L one-three layers blow moulding machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.
With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 100L-260L,upto 2layers.
TP260 blow molding machine is large size for 200-220L Single /Double ring drum
Standard 220L drum is 9.5-11KG , With high production Per hour.
Technical Specification
|
Max.product Volume |
( L ) |
260 |
|
Screw Diameter |
(mm) |
120 |
|
Screw L / D ratio |
(L/D) |
24-28 |
|
Screw drive power |
(KW) |
37-75 |
|
Screw Heating capacity |
(KW) |
18-24 |
|
Extruder DC motor Power |
(KW) |
135 |
|
NO.of heating zone |
(zone) |
4-8 |
|
Output of HDPE |
(kg/h) |
250-380 |
|
Oil pump drive power |
(KW) |
37 |
|
Clamping force |
(KN) |
780 |
|
Platen distance |
(mm) |
900-1750 |
|
Max.Size of Mold |
( WxH ) |
1200x1500 |
|
Capacity |
( L ) |
25 |
|
Max.Die diameter |
(mm) |
350-600 |
|
Die heat capacity |
(KW) |
55 |
|
NO.of heating zone |
(zone) |
8 |
|
Blowing pressure |
(Mpa) |
1.0 |
|
Alr volume |
(m3/min) |
1.2 |
|
Cooling water pressure |
(Mpa) |
0.4 |
|
Water consumption |
(L/min) |
120 |
|
Total Power |
(KW) |
260 |
|
Size of machine |
(LxWxH)m |
7.2x2.9x5.8 |
|
Weight of machine |
(TON) |
35 |
|
Dry cycle |
(pc/h) |
350 |
)
