Blow Molding Machine With Plastic Chemical Buckets
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| HS Code: | 8480719090 |
| Transportation: | Ocean,Land |

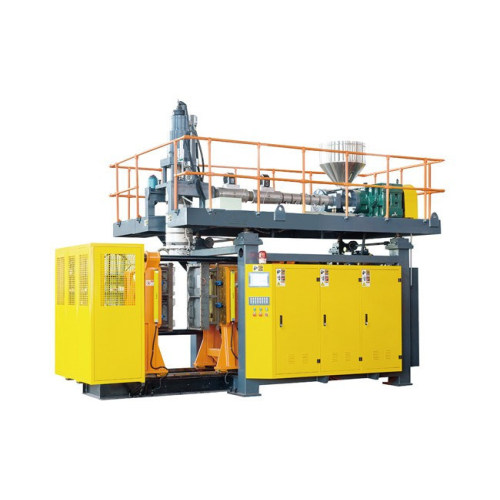

Chemical Bucket Blow Molding Machine
We are specializing in large blow moulding machine from 200-5000L,1-3layers,1000L one-three layers Water Tank Blow Moulding Machine,2000L one-three layers Pet Blow Moulding Machine.This machine can produce civil barrel,IBC barrel,220L double L-ring barrel,plastic tray for forklift,underground storage-shaped hollow products.
With this machine you can make water tanks,pallets,roadblocks,and any other plastic products,the capacity from 100L-260L,upto 2layers.
TP260 blow molding machine is large size for 200-220L Single /Double ring drum
Standard 220L drum is 9.5-11KG , With high production Per hour.
Technical Specification
|
Max.product Volume |
( L ) |
260 |
|
Screw Diameter |
(mm) |
120 |
|
Screw L / D ratio |
(L/D) |
24-28 |
|
Screw drive power |
(KW) |
37-75 |
|
Screw Heating capacity |
(KW) |
18-24 |
|
Extruder DC motor Power |
(KW) |
135 |
|
NO.of heating zone |
(zone) |
4-8 |
|
Output of HDPE |
(kg/h) |
250-380 |
|
Oil pump drive power |
(KW) |
37 |
|
Clamping force |
(KN) |
780 |
|
Platen distance |
(mm) |
900-1750 |
|
Max.Size of Mold |
( WxH ) |
1200x1500 |
|
Capacity |
( L ) |
25 |
|
Max.Die diameter |
(mm) |
350-600 |
|
Die heat capacity |
(KW) |
55 |
|
NO.of heating zone |
(zone) |
8 |
|
Blowing pressure |
(Mpa) |
1.0 |
|
Alr volume |
(m3/min) |
1.2 |
|
Cooling water pressure |
(Mpa) |
0.4 |
|
Water consumption |
(L/min) |
120 |
|
Total Power |
(KW) |
260 |
|
Size of machine |
(LxWxH)m |
7.2x2.9x5.8 |
|
Weight of machine |
(TON) |
35 |
|
Dry cycle |
(pc/h) |
350 |
)
