Full automatic plastic film recycling granulation unit
- Payment Type:
- T/T, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 60 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHANGHAI, NINGBO, ZHANGJIAGANG
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,FCA,CPT |
| Transportation: | Ocean,Land,Air |
| Port: | SHANGHAI,NINGBO,ZHANGJIAGANG |

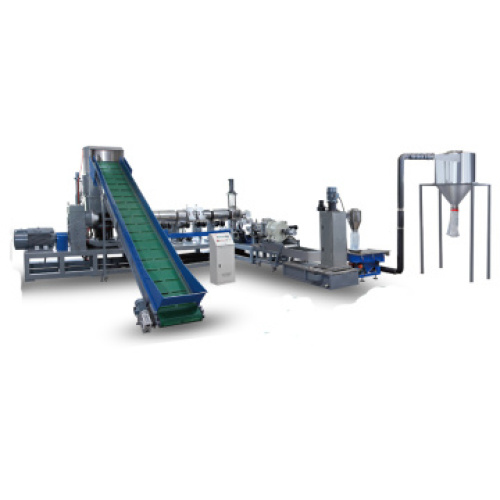

Compactor single stage Single Screw Extruder granulating line is equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary Die Face Cutting Granulating Line. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into Double Screw Extruder evenly. The degassing system and hydraulic screen changer equipped on Hdpe Film Single Screw Extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application. Downstream machine has water-ring cutting system,strand Pe Regrind Flakes Pelletizing Machine,dewatering machine ,cooling tank,,air blowing &silo.
Single stage Plastic Single Screw Extruder
Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET,PA/Nylon, etc
Material shapes: film, bag,fiber,rope scrap
Material types: rolls, loose, bundled
Material comes from offcut, industry defective materials, washed materials and printed materials
Note: depending on different material properties, various downstream equipments are needed.
Technical parameters for reference:
|
Model |
Screw Diameter(mm) |
L/D |
Capacity (kg/h) |
|
SJ65 |
65 |
33:1 |
60-100 |
|
SJ85 |
85 |
33:1 |
100~250 |
|
SJ100 |
100 |
33:1 |
200-350 |
|
SJ130 |
130 |
33:1 |
400-600 |
|
SJ160 |
160 |
33:1 |
650-800 |
|
SJ180 |
180 |
33:1 |
700-1000 |
