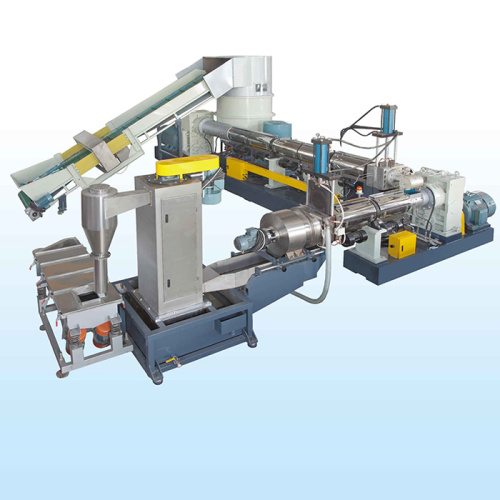

PP film Compactor double stage pelletizing line

PP film Compactor double stage Pe Film Single Stage Pelletizing Line is equipped with a cutter compactor ( agglomerator) on main Conical Double Screw Extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into Single Screw Extruder evenly. The degassing system and hydraulic screen changer equipped on main extuder for get high purity pellets finally. The second stage (baby extruder) could be choosed sepecially for some recycled materials which not clean enough. Double stage extruders with double filtering system will improve the final pellets quality.The cutting system adopts to  die face (water-ring) or strand( spaghetti) cutting for varies material application. Downstream machine has water-ring cutting system,Ps Abs Pelletizing Recycling Machine,dewatering machine ,cooling tank,,air blowing &silo.

Double Screw Extruder is normally choosed for recycled film material with some moisture percent,such as washed PE films/ PP raffia/ woven ect.

Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET,PA/Nylon, etc
Material shapes: film, bag,fiber,rope scrap

Material types: rolls, loose, bundled

Material comes from offcut, industry defective materials, washed materials and printed materials

Note: depending on different material properties, various downstream equipments are needed.

Technical parameters for reference:
