Product Description

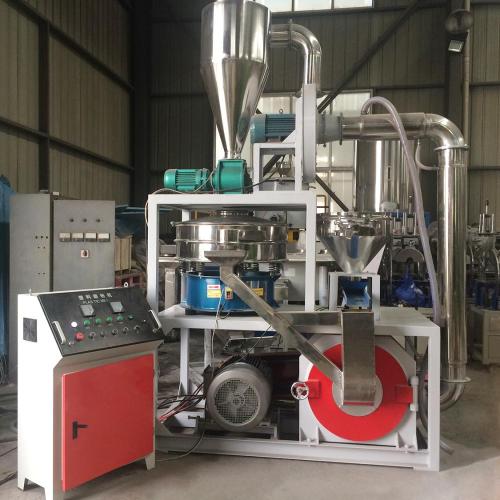

Plastic milling machine ,we also called Plastic Crusher Equipment.

Plastic Crusher Application: Suitable for Ps Abs Pelletizing Recycling Machine all kinds of grinding thermo plastic, like PP, PE, PVC,PET,EVA,ABS etc. Disk balde type and rotor balde type for varies plastic application.,

Plastic Auxiliary Machinery Advantages:

1.This type can grind all kinds Hard & Soft materials into 20-80 mesh powders in normal temperature

2.A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials

3.This machine has a more higher output, 2 or 3 times than normal miller, equip with Dust collector. An ideal energy saving machine in plastic industries

4.This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling again,high-efficiency dust collector system. Automatic and space saving.

5.The sword adopted imported stainless steel, durable, can work continous

6.Knife can be adjusted easily, easily maintained and control

7.Main shaft adopted SKF, matched with oil pump imported, can used about 3-4 years in normal use.

Rotor blade type Plastic Crusher Machine machine specification(for PVC)

Model	SMF-500	SMF-600	SMF-800
Motor power (kw)	37kw	55kw	75kw
Blow power (kw)	3kw	5.5kw	11kw
Voltage	380V, 50Hz (or according to customer)
Total power	41kw	52kw	90.5kw
Blade Dia.	500mm	600mm	800mm
Feeding material size	Below 10mm	Below 10mm	Below 10mm
Output size	40-80mesh	40-80mesh	40-80mesh
Vibration model	ZDS-800	ZDS-1000	ZDS-1200
Capacity	200-300kg/h	300-500kg/h	500-600kg/h

(Disk balde type) pulverizer machine specification(for PE ABS EVA PVC etc)

Model	MF-400	MF-500	MF-600	MF-800
Blade disc size	400mm	500mm	610mm	800mm
Blade Disc quantity	2 pieces	2pieces	2 pieces	2 pieces
Main motor power	30kw	37kw	45kw	55kw
Blower power	3kw	4kw	5.5kw	7.5kw
Flow valve power	0.75kw	0.75kw	0.75kw	1.1kw
Powder size	10-100mesh	10-100mesh	10-100 mesh	10-100 mesh
Cooling method	Air cooling & water cooling
Capacity	80-120kg/h	150-250kg/h	250-350kg/h	350-500kg/h
