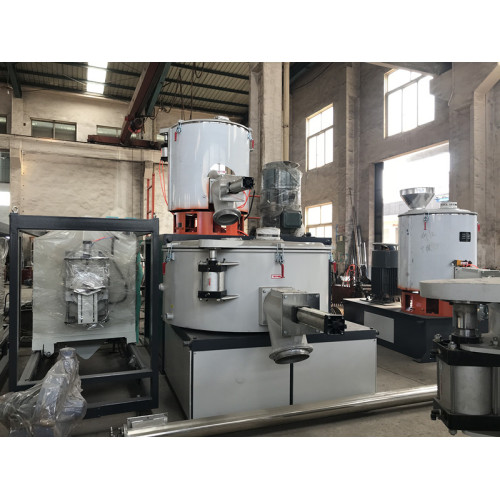

SRL-Z/SRL-W series mixer unit widely used in mixing Pipe Drying Machine,coloring for all kinds of plastic resin like PVC PP PE.It`s composed of one hot mixing pot and one cooling pot. Material could be filled into cooling mixer automatic after hot mixing process. It has function of Pipe Drying Equipment and protect from agglomeration.
Mixed material Application: Plastic plates,pipe,special-shaped profiles and degradation plastics.
Technical parameters for SRL-Z series high speed mixers
|
Model |
Total volume(L) |
Effective volume(L) |
Motor power(kw) |
Main shaft speed(rpm) |
Heating method |
Discharge method |
|
SRL-Z100/200 |
100/200 |
65/130 |
14/22/7.5 |
650/1300/200 |
Self-friction or electric heating |
Pneumatics |
|
SRL-Z200/500 |
200/500 |
150/320 |
30/42/11 |
475/950/130 |
||
|
SRL-Z300/600 |
300/600 |
225/450 |
40/55/11 |
475/950/100 |
Mixing time |
|
|
SRL-Z500/1000 |
500/1000 |
375/640 |
55/75/15 |
430/860/70 |
8-15min/batch |
|
|
SRL-Z800/1600 |
800/1600 |
600/1050 |
83/110/22 |
370/740/50 |
||
Auxiliary Machine Technical parameters for SRL-W series high speed mixers
|
Model |
Total volume(L) |
Effective volume(L) |
Motor power(kw) |
Main shaft speed(rpm) |
Heating method |
Discharge method |
|
SRL-Z300/1000 |
300/1000 |
225/700 |
45/55/7.5 |
475/950/80 |
Self-friction or electric heating |
Pneumatics |
|
SRL-Z500/1500 |
500/1500 |
330/1000 |
55/75/15 |
430/860/30 |
||
|
SRL-Z800/2500 |
800/2500 |
600/1500 |
83/110/22 |
370/740/60 |
Mixing time |
|
|
SRL-Z1000/3000 |
1000/3000 |
700/2100 |
110/160/30 |
300/600/50 |
8-15min/batch |
|
|
SRL-Z800*2/4000 |
800*2/4000 |
1200/2700 |
83/110*2/30 |
350/700/65 |
||
SHR series of high-speed mixer in plastic, rubber, dyes, food, household chemicals and other industries in a wide range of various materials,mixing, Plastic Drying Machine, coloring. The aircraft design is advanced, easy to operate, safe and reliable. Small size, light weight, high efficiency, low energy consumption, low noise, is your ideal purchase products..
Plastic Auxiliary Machinery Technical parameters for SHR series high speed mixers
|
Parameter / model |
Total volume ( L) |
Effective volume(L) |
Motor and heating power(kw) |
Spindle speed(rpm) |
heating method |
Discharge method |
|
SHR25A |
25 |
18 |
5.5/3 |
1440 |
electrical heating/self-friction |
pneumatic |
|
SHR50A |
50 |
35 |
7/11 |
750/1500 |
||
|
SHR100A |
100 |
75 |
14/22/6 |
650/1300 |
||
|
SHR200A |
200 |
150 |
30/42/9 |
475/900 |
||
|
SHR300A |
300 |
225 |
40/55/9 |
475/900 |
Mixing time |
|
|
SHR500A |
500 |
375 |
47/67/12 |
430/860 |
8-15min/batch |
|
|
SHR800A |
800 |
600 |
60/90/15 |
370/740 |
||
|
SHR1000A |
1000 |
750 |
110/160/28 |
325/650 |
||
