2500LBS 12V ATV Electric Winch
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Set/Sets
- Min. Order:
- 100 Set/Sets
- Delivery Time:
- 35 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai, Ningbo, Taicang
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China Mainland |
|---|---|
| Productivity: | 100000sets/Month |
| Supply Ability: | 100000sets/Month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai,Ningbo,Taicang |

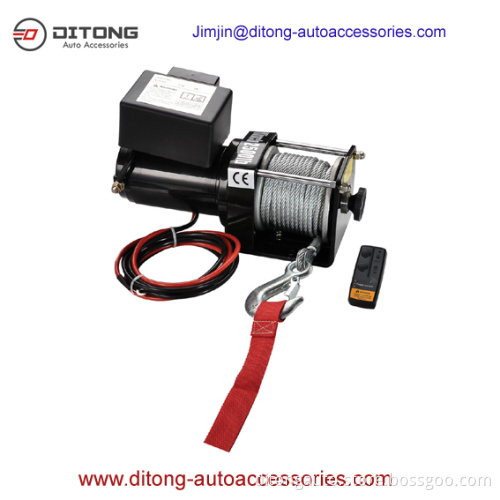

2500LBS 12V ATV Electric Winch
Model:
EW2500
Certificate:
CE certification
Specifications:
|
Rated Line Pull |
2500lbs(1133kgs)single line |
|
Motor |
Permanent magnet motor,0.8kw/1.1HP(12V) |
|
Gear Reduction Ratio |
153:1 |
|
Cable(Dia.xL) |
Φ:3/16" x45`(Ф4.76mmx14m) |
|
Drum Size(Dia.xL) |
Φ:1.24"x2.88"(Φ31.5mmx73mm) |
|
Overall Dimensions(LxWxH) |
11.2"x4.1"x4.1"(285mmx105mmx105mm) |
|
Mounting Bolt |
3.13"(79.5mm) |
|
Packing Size |
34x24x34cm,2pcs/ctn |
|
Weight |
N.W/G.W:13KG/14KG |
1.Don`t use winch as a hoist,Please don`t use for transportation of people
2.Don`t operate and spool under full load over one minute continuously
3.While motor is overheating,Please stop for a while to cool down.
4.Limited warranty
Line speed,Motor Current (First Layer)
|
Line Pull |
lb |
0 |
500 |
1000 |
1500 |
2000 |
2500 |
|
kg |
0 |
227 |
454 |
680 |
907 |
1133 |
|
|
Line Speed |
FPM |
14 |
12 |
10 |
8 |
7 |
5 |
|
MPM |
4.2 |
3.6 |
3.0 |
2.4 |
2.1 |
1.5 |
|
|
Motor Current |
AMPS |
20 |
30 |
55 |
75 |
100 |
120 |
Line Pull and Cable capacity
|
Layer of cable |
1 |
2 |
3 |
4 |
5 |
6 |
|
|
Rated Line Pull per layer |
LB |
2500 |
2000 |
1630 |
1380 |
1190 |
1050 |
|
KG |
1133 |
906 |
740 |
620 |
540 |
470 |
|
|
Cable Capacity Per Layer |
FT |
4 |
6.5 |
14 |
22 |
31 |
41 |
|
M |
1.2 |
2.0 |
43 |
6.8 |
9.5 |
12.5 |
|
