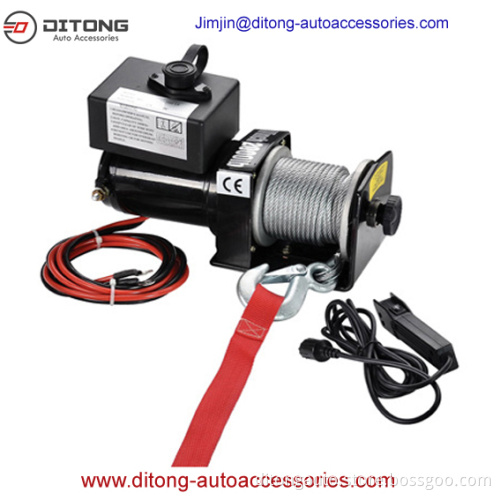

2000LBS 12VDC Self Recovery Electric Winch for Jeep Truck Trailer SUV CE
Model:EW2000
Quick Details
Product feature:
1.Free Spooling Clutch
2.Automatic Breaking Action
3.Specially designed diferential planetary gearing for heavy utu
4.Solenold control box supplied
Certificate:
CE certification
Specifications:
|
Rated Rope Tension |
Single Rope:2000lb(907kg) |
|
Motor |
Permanent magnet motor,0.7kw/0.9hp 12v;0.8kw/1.0hp(24v) |
|
Gear Reduction Ratio |
153:1 |
|
Cable(Dia.xL) |
Φ:5/32"x49`(Φ4mmx15m) |
|
Drum Size(Dia.xL) |
Φ:1.24"x2.88"(Φ31.5mmx73mm) |
|
Overall Dimensions(LxWxH) |
11.2"x4.1"x4.1"(285mmx105mmx105mm) |
|
Mounting Bolt |
3.13"(79.5mm) |
|
Packing Size |
34x24x34cm,2pcs/ctn |
|
Weight |
N.W/G.W:13KG/14KG |
Line speed,Motor Current and Line Pull(First Layer)
|
Line Pull lbs(kgs) |
Line Speed ft/min(m/min) |
Current A |
|
|
12V DC 24V DC |
12V DC 24V DC |
|
0 |
10.5(3.2) 11.8(3.6) |
12 6 |
|
500(227) |
9.2(2.8) 10.2(2.8) |
25 10 |
|
1000(454) |
7.5(2.3) 8.5(2.6) |
40 15 |
|
1500(680) |
5.9(1.8) 6.9(2.1) |
60 25 |
|
2000(907) |
3.3(1.0) 3.6(1.1) |
90 55 |
Line Pull and Cable Capicity
|
Layers of wire rope |
Rated Line Pull Per Layer LBS(KGS) |
Length of wire rope wound on drum ft(m) |
|
1 |
2000(970) |
6.5(2.0) |
|
2 |
1630(739) |
14.0(4.3) |
|
3 |
1380(626) |
22.0(6.8) |
|
4 |
1190(540) |
31.0(9.5) |
|
5 |
1050(476) |
41.0(12.5) |
|
6 |
940(426) |
49.0(15.0) |
