Hydrogen Generation Plant Ammonia Cracker Process 3P 50/60HZ
-
USD1000≥1 Set/Sets
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 800set/year |
| Supply Ability: | 800sets/year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001 |
| HS Code: | 84196090 |
| Port: | Shanghai |

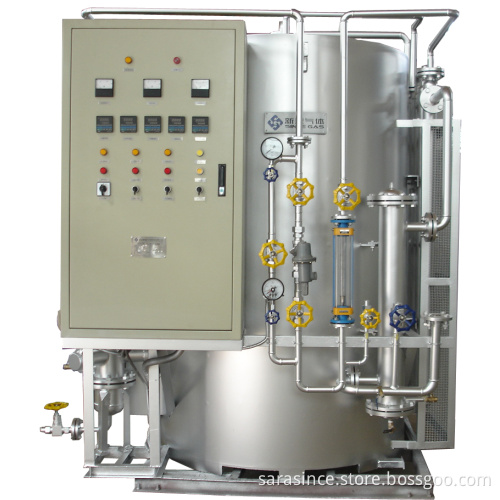

Hydrogen Generation Plant Ammonia Cracker Process 3P 50/60HZ
Condition:New
Usage:Heat Treatment Furnace
Dimension(L*W*H):Various
Weight:3-20ton
Warranty:12 months
After-sales Service Provided:
Quality:superior
Desigh:novel
Price:competitive
Rated heating power of purifier (kw):2~10
Rated ammonia consumption (kg/h):2~16
Catalyzer:Nickel catalyst
Ammonia cracking unit makes use of nickel catalyst to crack or break ammonia into a mixture of
hydrogen and nitrogen under endothermic reaction. Raw material for ammonia cracker is ammonia gas
and this gas is easily available in cylinders. When ammonia is passed over the catalyst, the cracking
takes place at 8500 degree C temperature and it cracks to N2 + H2 mixture containing 75% hydrogen
and the remaining 25% is nitrogen. The cracked ammonia gas consists of approximately 80 PPM
uncracked ammonia impurities and its dew point is only 300 degree C.There is a special tank surrounding the
cracker where the nitrogen and hydrogen are separated. Since hydrogen is 14 times lighter than nitrogen, it
rises to the top of the tank, while a special relief valve at the bottom of the tank allows the nitrogen at the base
of the tank.
Product feature:
Compact design, convenient installation, the core part of cracking system is made of INCO ALLOYS,which is
the material of corrosion-resistant, Alka-resistant and Acid-resistant, service life is more than 10 years.
Heat preservation of furnace is full fire structure, with the advantage of rapid temperature rise.
Heat element is made of full alloy, heating type is plug fuse, it's no need to stop the gas when replace
the heat elements.Alarm automatically when pressure has too higher or too lower.
1. PLC programmed controller can be added, which can automatically control the conversion of various working states of the equipment.
2. Dew point detector can be added.
3. Gas content testing system can be added.
(2) Reliable performance and long service life
(3) Heating element
(4) Thermal insulation material
(5) Electrical control
(6) Depressurization system
(7) Purification system
(8) Simple installation
(9) Easy operation and maintenance
(10) High safety
Advantage:
Out pressure is adaptable between 0.05Mpa to 0.5Mpa
High security: Special furnace material, gas input and output system is special structure, which Max the
security.
