SMT electronic component counter, smd parts counting machine
-
USD610≥1 Piece/Pieces
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 345650 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB |
| Certificate: | CE |
| HS Code: | 8541500000 |
| Transportation: | Ocean,Air |
| Port: | Shanghai |

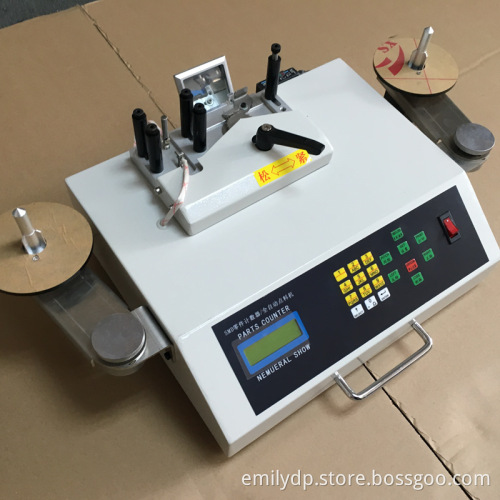

SMT electronic component counter, smd parts counting machine
Ordinary SMD Counter: YS-801 and YS-802
YS-801 without leak detection feature
YS-802 with leak detection feature, can detect empty components
Intelligent SMD Counter: YS-IH881 and YS-IH882
YS-IH881 without leak detection feature
YS-IH882 with leak detection feature, can detect empty components
Application
1. Any size Reel SMD electronic components/chip, such as SMD capacitor, SMD resistor, etc
2. Space between two components: 2,4,8,10,12,16,24,32,44,56(mm)
3. Width of reel: 8, 12, 16, 24, 32, 44, 56mm
4. Suitable for all industries related to SMD components
Specification:
| Voltage | AC110V/220V, 50/60Hz(convertible) |
| Capability | 5000 pcs /30s |
| Power consumption | 30W(2 Motors) |
| Counting volume | -99999 ~ 99999pcs |
| Size | L470*W300*H180mm |
| Net Weight | 10kg |
| Reel Diameter | Suitable for SMD Reel of any diameter |
| Reel Interval Distance | 2,4,8,10,12,16,24,32,44,56mm |
| Reel Width | 8,12,16,24,32,44,56mm |
Features:
1.Full automactic counter, high accuracy, no error.
2.No risk of damaging the tapes, special design to prevent SMD reel from dropping.
3.Count forward and backward,double-checking ensures accuracy,built-in memory allows you to preset count quantity.
4.The counter use drafting LCD screen, easy operation, full English display.
5.Use patent reflector,humanized operation platform.
6.Optional bar scanner and code printer, convenient for component management.
7.Fiber sensor detector can detect empty components. Motor will stop working when detected leak.
