Polymeric Chromatography Media

Introduction

The polymeric matrix, monodispersion and optimal porosity give rise to beneficial features of high resolution and loading capacity,Suzhou Nano-Micro Technology Company, Ltd. (Nanomicrotech) offers a new generation of monodisperse spherical polymeric chromatography media, produced using a patented technology that is developed in-house.  strong rigidity, resistance against acid and base, low back pressure, long lifetime and low non-specific adsorption.  Nanomicrotech is proud to be a world-leading supplier of monodisperse polymeric chromatography media, with its unique technology of controlling particle size, size distribution, specific surface area, pore structure and functional groups.These chromatography media are made from polystyrene (UniPS®), polymethyl methacrylate (UniPMM), copolymers of polystyrene and polymethyl methacrylate (UniPSN).

Features and Benefits

High uniformity of particle size

Our monodisperse polymeric media have perfect spherical shape, highly uniform particle size distribution, and precise particle size (Figures 1 and 2). Compared to other commercial chromatography media (with a broad particle size distribution in Figure 2), our media have demonstrated great advantages of strong rigidity, easy column packing, low back pressure, high column efficiency, good resolution, stable column bed and lower risk of frit-plugging.

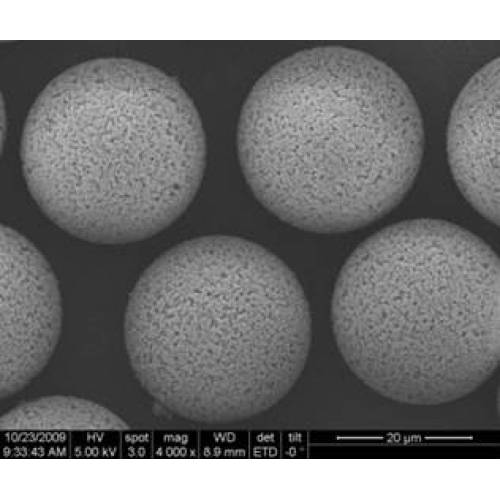

Figure 1.  SEM micrographs of UniPS® monodisperse spherical chromatography media

Figure 2. Particle size distribution of UniPS®(red)compared with well-known international brands(green)

Optimized pore structure

Pore size and specific surface area have a strong influence on the separation performance of chromatography media. The choice of a chromatography media with correct pore structure would improve the loading capacity, the column efficiency and the final purity of target molecule. We offer media with pore sizes typically from 50 Å up to 1000 Å.

Figure 3. SEM micrographs of UniPS® with different pore sizes

Superior chemical and pH stability

UniPS® chromatography media, made from highly cross-linked polymers of styrene and divinylbenzen, have excellent pH stability over a wide range of pH 1-14. These chromatography media maintain their outstanding physical and chemical stability even in extremely acidic or alkaline solutions (for e.g. 1 M NaOH/HCL) and organic solvents (such as methanol, ethanol, acetone, n-propanol, isopropanol, DMSO, THF, acetonitrile, 6 M guanidine hydrochloride, etc.). UniPS® provides the customers a wider choice of conditions for process development and optimization. The outstanding chemical stability, have been proven to meet the requirements of Cleaning-in-Place (CIP) in cGMP operations. For example, the loading capacity and separation efficiency remain unchanged, after a UniPS® 10-300 column was soaked in 1 M NaOH at 60°C for 40 days (Figure 4, used for Insulin purification).

Figure 4. Insulin loading capacity (breakthrough curve), when a UniPS® 10-300 column was soaked in 1 M NaOH (at 60°C) for up to 40 days

Large-scale Manufacturing Capability and Product Performance Consistency

Our state-of-the-art manufacturing facilities enable the bulk production of media, and a good quality control system assures the highest quality and batch-to-batch reproducibility. Figures 6, 7 and 8 showed the results of the performance test of more than twenty different lots of the chromatography media, indicating the good batch-to-batch reproducibility in our production.

Figure 5. Nanomicrotech polymeric chromatography media in bulk packings

Figure 6. Consistent particle size and distribution in different lots of UniPS®

Figure 7. Stable pore volume and specific surface area in different lots of UniPS®

Figure 8. Reproducible isolation of four proteins by different lots of UniPS®

Different Polarity in Monodisperse Polymeric Chromatography Media

Nanomicrotech provides customers more choices of different materials and surface polarity, for process optimization, for example UniPS®, UniPSN and UniPMM, with increasing surface polarity in that order.

Applications

Nanomicrotech has an in-house application development group with vast experiences. This group support customers with a lot of technical services, from process development to technical transfer for production at industrial scale.

List of Products

List of typical particle and pore sizes of Nano-Micro Tech monodisperse spherical polymeric chromatography media*:

* Custom-made particle and pore sizes are available upon request.
