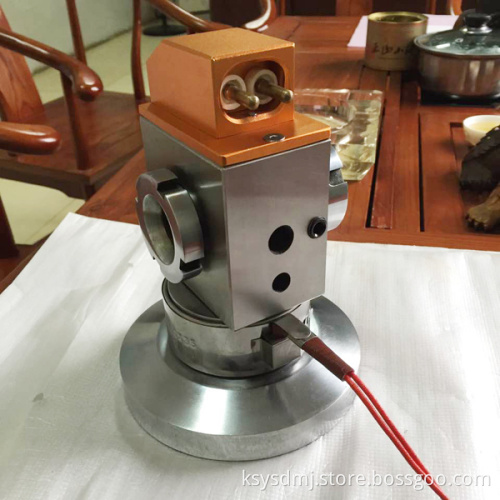

extrusion head for extrusion line

Pictures for your reference:

1.material of the head: S136 vacuum qunch treatment
2. hardness: 50-52º
3. conductor diameter:Ø0.1-5mm
4.suitable extrusion material:PVC/PE,etc
5.matched extruder spiral diameter:25-50mm
6.Insulation structure:single layer

                                single layer+one stripe

                                single layer+2stripes

1)self-centering,free adjustable

3)easy to clean
4)no dea-corner
5)constant and stable compound current

We can supply following insulation structure wire/cables

• solid plain
• solid skin coloring
• solid skin color+stripe
• foam
• foam skin
• foam skin+stripe
• skin foam skin
• skin foam skin+stripe

About us---Kunshan Yishida Mould Machinery Co.,Ltd

Kunshan Yishida Mould Machinery Co., ltd founded in 1998 and based in Kunshan, Jiangsu province. We have almost 20years experience till now. we are specializing in manufacturing wire extrusion crosshead. we can produce cable that diameter range from 0.24mm-200mm.we have designed hundreds of machine head, such as free-adjustable, adjustable, single-layer, double-layer, three-layer, multi-layer co-extrusion, flat wire, high temperature crosshead, etc
We strictly operate our company and products in according with ISO9001 quality guarantee requirements. Our products have enjoyed great population and reputation among our clients. We have rich experience in wire extrusion industry with advanced equipments and strong technical support. Through reasonable and effective marketing model, we will work hand in hand to create a better future in the social progress and economic development.

1) 100% quality guarantee (ISO9001)

2)  Professional technical support

3) OEM & ODM are welcomed

4) Small order is acceptable

5) Delivery in time

6) Flexible payment terms(L/C,T/T,western union, Paypal, etc.)

7) Promopt response(your inquiry will be replied within 24hours)

welcome contact us to start business !
