Grizzly Vibrating Feeder

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 25 Days

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Transportation:	Ocean

Product Description

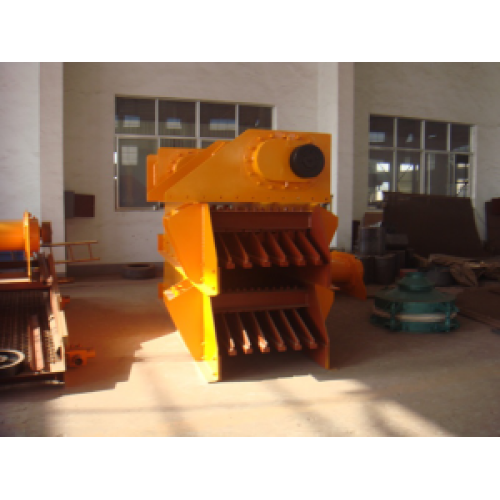

ZZG Series Low Type vibrating Feeder

1.Principle and Structure characteristics:

ZZG series low type vibrating feeder is mainly used for the event conveying of bulk materials before the first crushing, and it is an essential part for this process. It includes two parts in the working face of feeder, that is, conveying area and bars area, and the bars are tilted.

The machine because of its unique superiority, has been widely used abroad, compared with other type feeder, has the following advantages:

1)With enough rigidity, can withstand the impact of the large stone.

2)The width and height of the feeder face is reasonable, this character ensures the storage of hopper above and is very convenient for truck to unload the bulk.

3)Compact structure, no complex transmission parts, maintenance is convenient.

4)Grid bar is set to eliminate the waste materials.

5)The combine of low type feeding machine with broken units can greatly reduce the working height and then reduce the workload of whole line, which makes the system more economic and reasonable.

2.Technical Parameters:

Model

Effect Working Face
(mm)

Adjustable Range Between Bars
mm

Max. Material Diameters
mm

Capacity
t/h

Weight
t

Size
(L*W*H)
mm

ZZG0752

750×2560

30~130

500

150

2.1

3035×1570×945

ZZG0937

900×3700

35~120

600

200

3.5

4250×1724×1085

ZZG1037

1050×3700

30~150

720

300

3.7

4250×1874×1130

ZZG1243

1220×4300

35~140

850

400

5.3

4955×2206×1120

ZZG1449

1370×4900

35~165

920

450

6.8

5475×2372×1225

ZZG1560

1500×6000

50~200

1000

600

12.5

6410×2390×2995

3.Installation and Machine Size:

Model

A

B

C

D

E

F

G

H

I

ZZG0752

3015

1570

945

260

430

200

350

160

910

ZZG0937

4250

1724

1085

280

480

220

410

210

1060

ZZG1037

4250

1974

1130

280

480

220

410

210

1210

ZZG1243

4955

2206

1120

240

600

180

520

210

1400

ZZG1449

5475

2372

1226

280

690

220

620

210

1550
