Automatic Wheel Switch Sorter

Bealead, which is intelligent logistic solutions provider, provides wheel sorter .

Our company can provide all kind of logistic sorting machine. Such as crossbelt logistic sorting machine, ring sorter, linear

sorter and z type sorter...

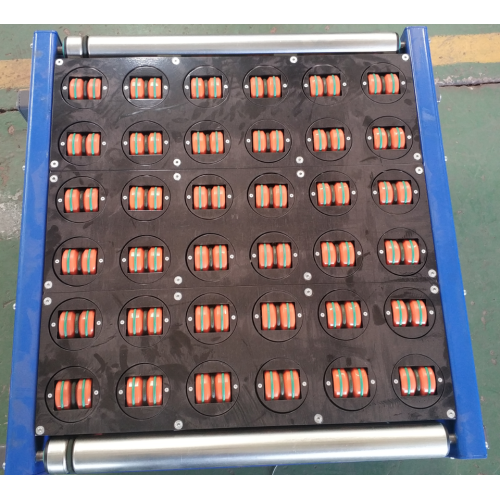

Oblique wheels sorting machine is a used belt wheels, servo and mechanical structure control direction to transfer parcels.

Oblique wheels sorter adopt module structure, as an innovation machine that can according to customers’ requirements to

assemble and random splicing combination. This Sorter adopt electric roll to become a 45°sorting angle.

Details

CAPACITY：≥6000pcs/h

TRANSFER SPEED：1.5m/s-2.2m/s

ANGEL：45°

DIRECTION：TWO-WAY

TRANSFER METHOD：ELECTRIC ROLL

CONTROL METHOD：PLC

MAX：1000*700*700mm

MIN：100*100*10mm

WEIGHT：≤50KG

VOLTAGE：380V

MAX POWER：5KW

Company Information

ChangShu Bealead Automatic Machine Co.,LTD. located in changshu, Jiangsu ,China. Close to ShangHai Port, driving for

1.5 hours, transportation is convenient.

Our company is a R&D manufacturer of intelligent devices for clothing production.

We are leadingpositions in down feather filling area, covered most of the Chinese market. Bosideng, Luo Lai, UNI QLO, are

our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service

you at the first time you need.
