Large Weight Fiber Filling Machinery

Get Latest Price

Transportation:: Ocean, Land

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	200 sets/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO 9001
Transportation:	Ocean,Land
Port:	Shanghai

Product Description

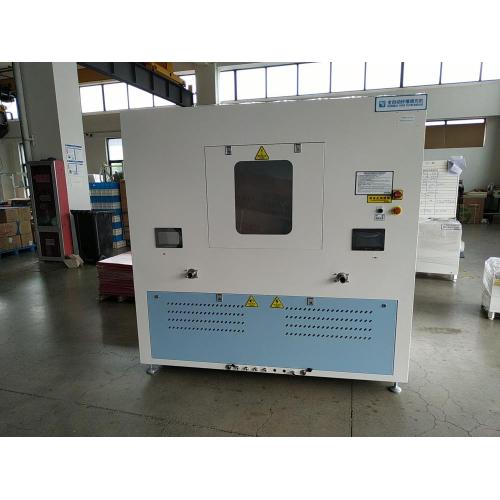

2 nozzles fiber filling machine, especially for large weight, 2 weighing units for each nozzle of fiber stuffing machine, automatic fiber filling machine is easy to operate, only to write into your grams in the scrren of polyester fiber filling machine then step the pedal, material will come into panel.

Details:

Brand: Bealead

Model: 402E

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 12kg

Weighing Range: 10g- 100g

Accuracy: 0.1g

Feeding Unit Size: 1.7* 1.4* 1.9m

Weighing Unit Size: 1.5* 0.6* 1m

Overall Size: 1.7* 4.9* 1.9m

Min. Site Area: 4m* 6m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	-
PPR Pipe	1.5 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	√

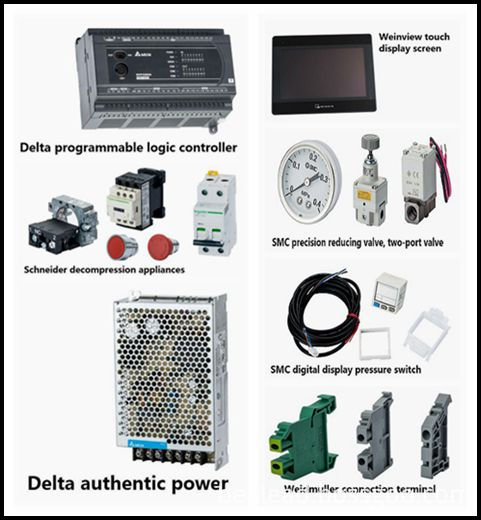

Accessories
