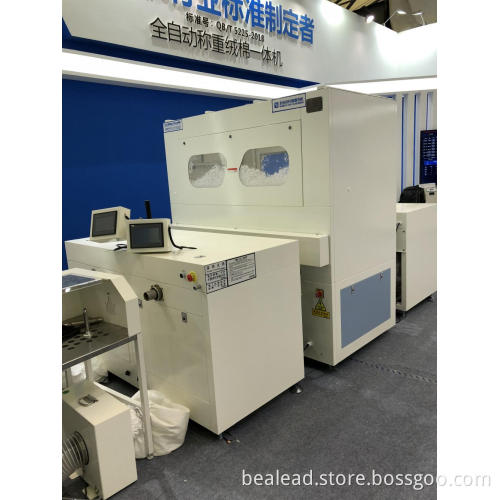

Four Head Fiber Filling Machine

Wow, there are Four filling ports for fiber filling machine, allow 4 operators working at the same time.

Two scales support each filling port, so the speed is faster than before.

Fully automatic fiber filling machine, weighing and filling.

Max weight of ball fiber filling machine can reach to 150g, min is 5g.

Highest precision of polyester fiber filling machine reach to 0.1g.

Storage unit and weighing unit of fiber stuffing machine are combined together to reduce covering space.

Details:

Brand: Bealead

Model: BL-804E

Composed by: 1 feeding unit and 4 weighing units / filling station

Filling Pipes: 4

Scales by filling pipe: 2

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 5g- 150g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Accessories

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
