4 Nozzles Fiber Filling Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 SETS/MONTH
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Certificate:	CE/ISO 9001
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

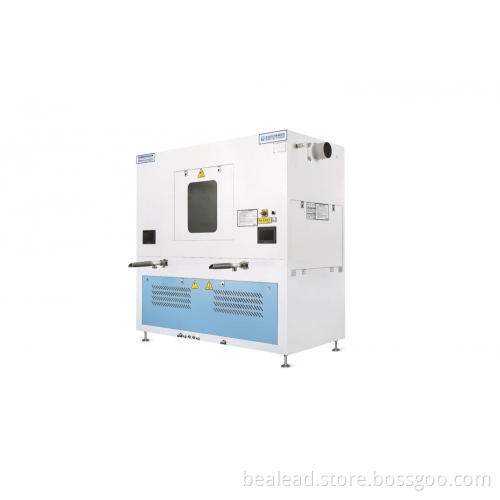

This automatic fiber filling machine is our R&D new creation of four filling stations.

Each station of fiber filling machine with 1 filling pipe and single weighing system. Weighing system is inside of the main box.

Weighing range of ball fiber filling machine is 1-80g, capable of filling both large and small lattice panels.

Highest precision of polyester fiber filling machine can reach to 0.1g.

Details:

Brand: Bealead

Model: 404D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 4

Scales by filling pipe: 1

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Applicatiofiber

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	-
PPR Pipe	1.5 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	√

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
