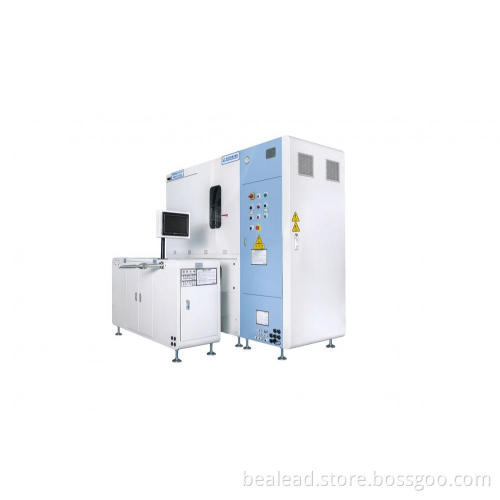

Automatic Fiber Filling Machine

1. All-in-one machine, High Valuable machine. Down filling machine as well as fiber filling machine, could fill two different mateirals: down and Ball fiber. Shot your cost problem!

2. 2 pipes, allow 2 people operating machine at the same time to finish different Filling target.

3. Each pipe supported by 4 weighing scales. Work very fast, Machine always prepare well in advance.

4. Save Up 100*100 data, help you keep many styles data inside computer.

5. Single Fiber Holding Volume: 8kg~12kg approximately.

6. Machines can be widely used for garments(jackets, vests), sleeping bags, comforters/duvets, and accessories.

Details:

Brand: Bealead

Model: 246B

Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1000kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.4* 0.9* 2m

Weighing Unit Size: 1.6* 0.5* 0.9m

Overall Size: 2.4* 4.2* 2m

Min. Site Area: 4m* 5m

Main Specification

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
